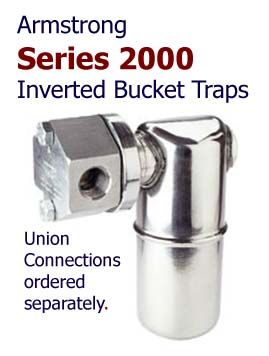

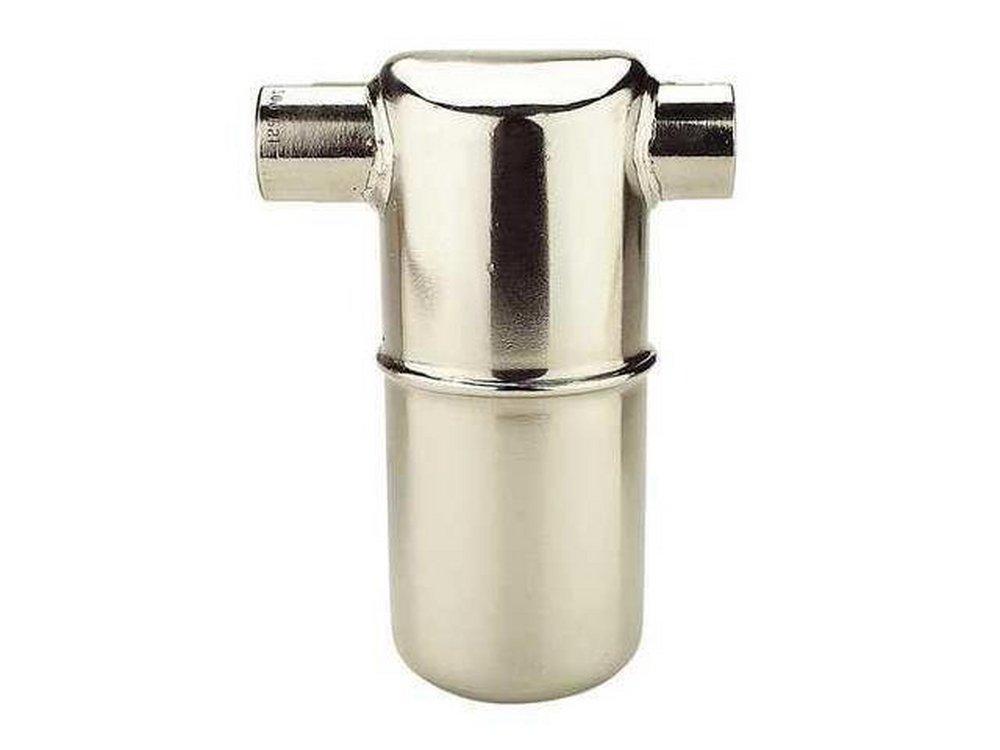

Armstrong C5324-7 2000 Series 1/2 x 3/4 in. 800F 200# 400 psi Steam Trap

Product Description

The Armstrong International 2000 Series steam trap, MPN C5324-7, is designed for use in systems with pressure up to 400 psi. This steam trap features a 1/2 inch pipe connection, ensuring compatibility with various steam systems. It is suitable for handling capacities up to 850 lb/hr, making it a robust choice for industrial applications.

• Universal connector allows flexible installation.
• Constructed from stainless steel for enhanced durability.
• Designed to prevent freeze-ups and manage pressure efficiently.

Product Highlights

The 2000 Series steam traps are known for their ability to withstand extreme conditions while ensuring effective operation. Ideal for heat exchange equipment, these traps can quickly vent air and non-condensable gases, optimizing system performance.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5324-7

Technical Specifications

• Model: 2011
• Series: 2000 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Stainless Steel
• Steam Trap Connection Size: 1/2 inches
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 200 psi
• Orifice Size: 7/64 inches
• Weight: 13.37 lbs
