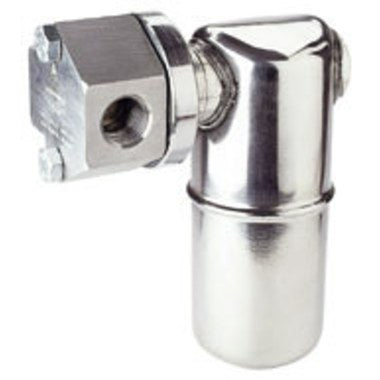

Armstrong C5324-5 Steam Trap Inverted Bucket 2011 70 PSI 1/2 Inch

Product Description

The Armstrong steam trap model C5324-5 is designed to efficiently manage steam systems. This inverted bucket steam trap operates at a maximum pressure of seventy psi. It features a stainless steel body and includes a 360 degree flange connector for easy installation.

• Maximum operating pressure: 70 psi
• Capacity: up to 830 pounds per hour
• Material: stainless steel

Product Highlights

The inverted bucket trap employs a simple leverage system, utilizing the weight of the bucket to control the valve against system pressure. These traps are durable and resistant to wear and corrosion.

Product Information

Standard Information

• Brand: Armstrong International
• Product Type: Inverted Bucket Steam Trap

Technical Specifications

• MPN: C5324-5
• Body Material: Stainless Steel
• Connection Size: 1/2 Inch
• Max Pressure: 70 psi
• Weight: 7.50 lbs
• Working Pressure Range: Up to 70 psi
• Orifice Size: 5/32 Inch
