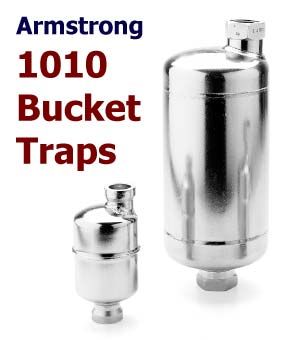

Armstrong C5319-2 1010 - 3/4 150 psi Inverted Bucket Steam Trap

Product Description

The Armstrong inverted bucket steam trap, model 1010, has a three quarter inch pipe connection in an in-line vertical configuration for optimal installation. This steam trap is constructed from stainless steel and is designed to operate at a maximum pressure of one hundred fifty psi. The inverted bucket design uses the weight of the bucket to open the valve against the pressure. This system is effective for venting air and non-condensable gases quickly.

• Quick and easy installation with in-line vertical configuration.
• High resistance to wear and corrosion due to stainless steel construction.
• Handles dirt and operates effectively under light loads.

Product Highlights

This steam trap is ideal for heat exchange equipment and ensures efficient operation by purging air and maintaining pressure balance.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5319-2

Technical Specifications

• Model: 1010
• Series: 1000 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Stainless Steel
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Mounting: In-Line Vertical
• Max Pressure: 150 psi
• Orifice Size: #38
• Weight: 1.50 pounds
