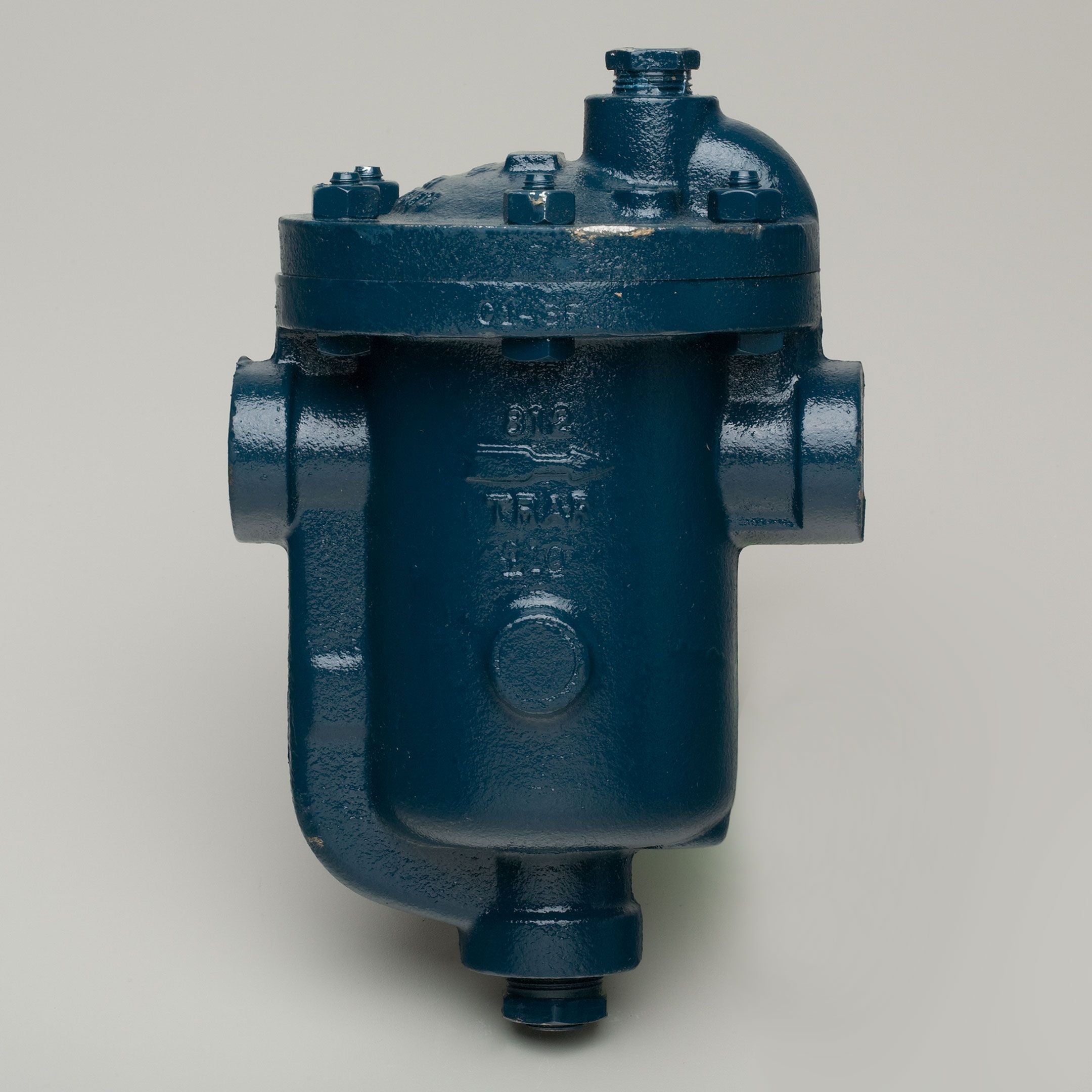

Armstrong C5318-2 Inverted Bucket Trap 30 PSI 3/4 NPT

Product Description

The Armstrong inverted bucket steam trap, model C5318-2, is designed with a three-quarter inch pipe connection and operates in an in-line horizontal configuration. This setup enables steam to enter from the base while allowing condensate to flow out from the top. It uses a leverage system that relies on the bucket's weight to function the valve against pressure. The trap shows high resistance to wear, corrosion, and hydronic shock. Its maximum operating pressure is thirty psi with capabilities to handle up to two thousand fifty pounds per hour.

• Inverted bucket design for efficient steam management.
• Constructed from durable cast iron material.
• Max pressure capacity of thirty psi.

Product Highlights

This steam trap is suitable for thermal energy systems requiring rapid venting of air and non-condensable gases. It is effective in purging air, managing dirt, and maintaining performance under light loads.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5318-2

Technical Specifications

• Series: 800 Series
• Armstrong Model: 812
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 30 psi
• Orifice Size: 1/4
• Weight: 15.00 lb
