Armstrong C5318-10 Armstrong 813 Inverted Bucket Trap 3/4 NPT 125 PSI 1/4 Orifice C5318-41

Product Description

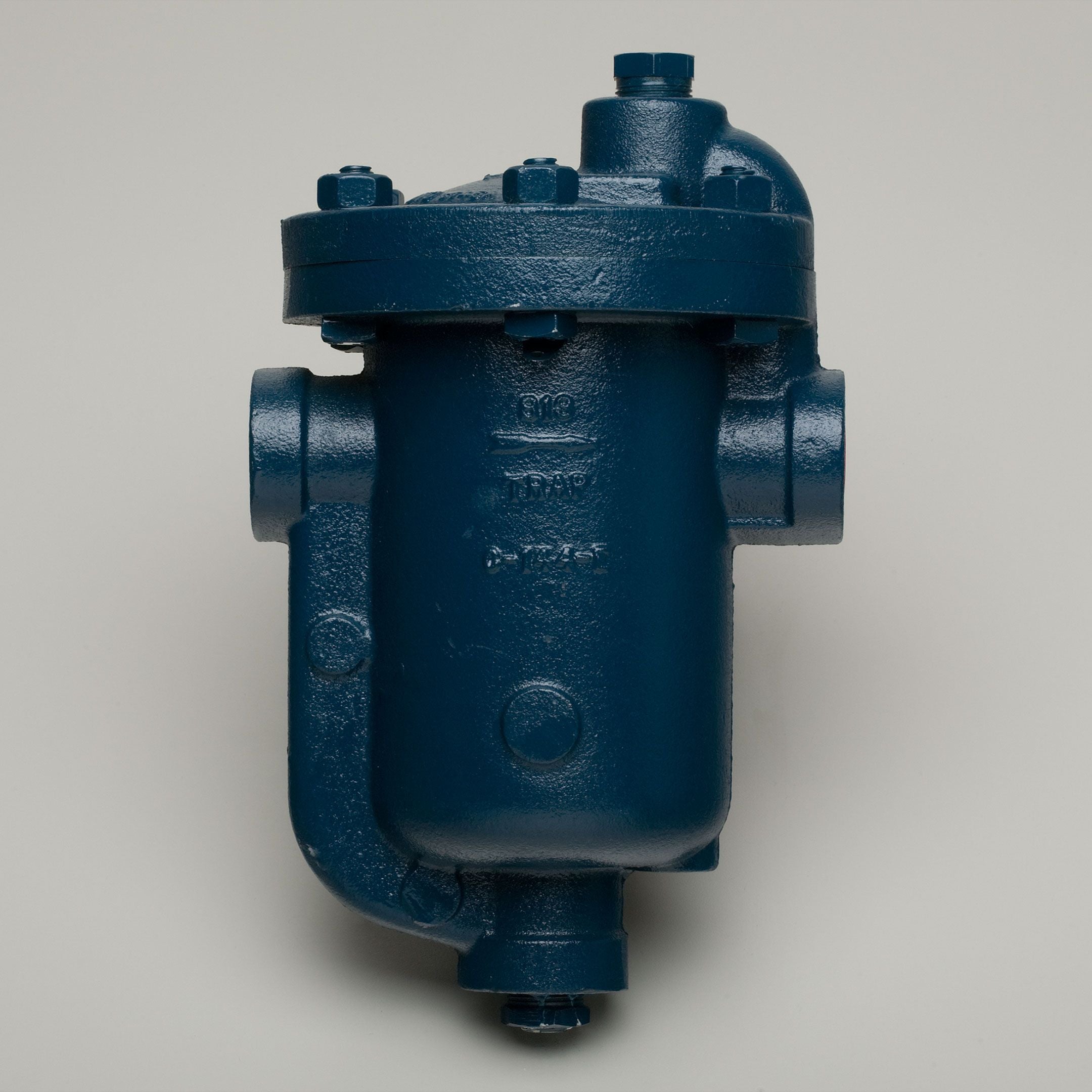

The Armstrong inverted bucket steam trap, model C5318-10, features a three-fourths inch pipe connection designed for in-line horizontal use. This steam trap allows steam to enter from the bottom while enabling condensate to discharge from the top. The bucket leverages its weight to open the valve against pressure, optimizing performance. These traps are durable and resist wear, corrosion, and hydronic shock. The body is made of cast iron and operates at a maximum pressure of one hundred twenty-five psi, with a capacity of three thousand nine hundred pounds per hour.

• Durable cast iron construction
• Operates effectively at up to 125 psi
• Capable of discharging up to 3900 pounds of condensate per hour

Product Highlights

This inverted bucket trap is suitable for heat exchange equipment requiring efficient air and gas venting. It is effective at purging air and can operate against back pressure while handling dirt well, making it a reliable choice for steam applications.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5318-10

Technical Specifications

• Model: 813-3/4-125
• Series: 800 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 125 psi
• Orifice Size: 1/4
• Replaces: C5318-41
• Weight: 28.00
