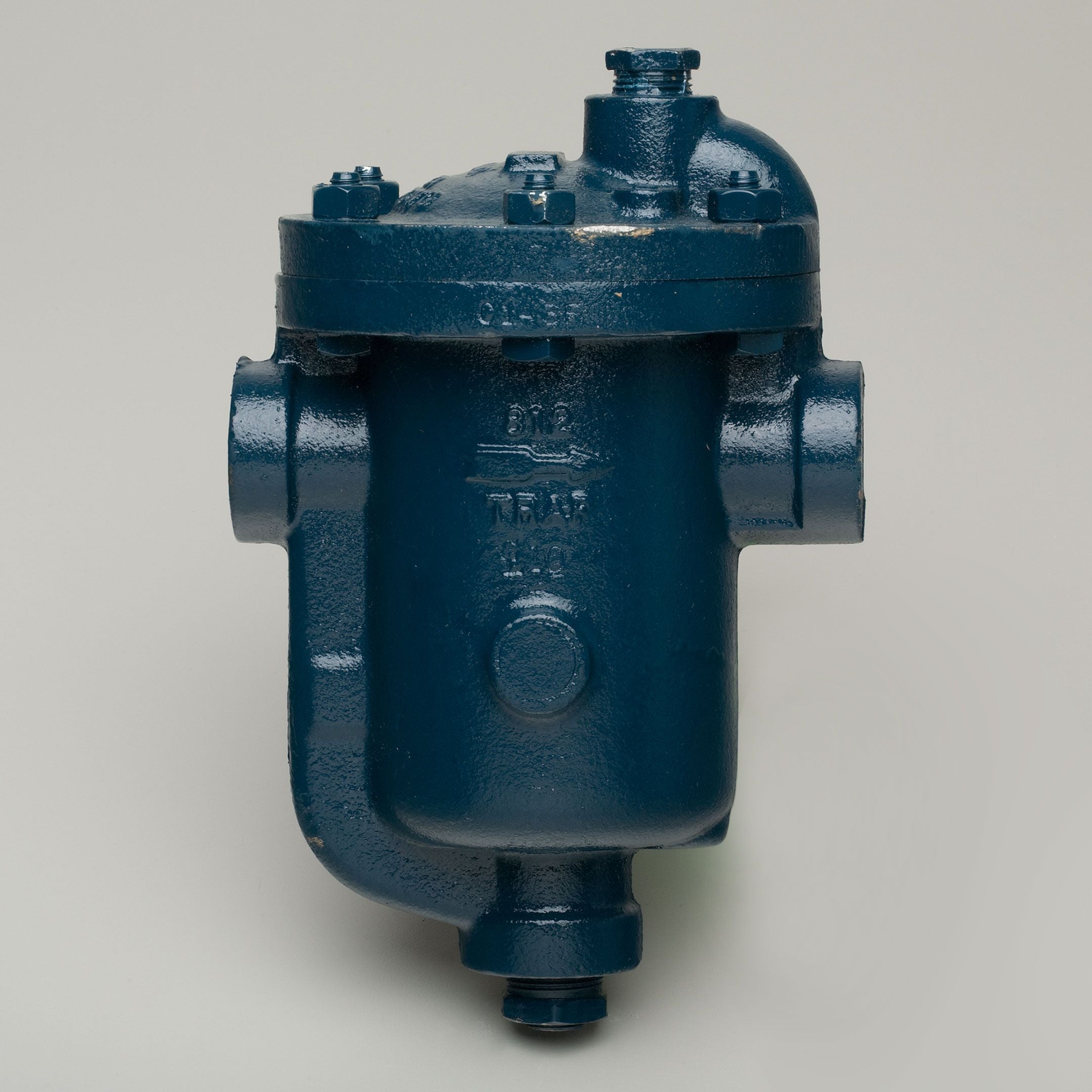

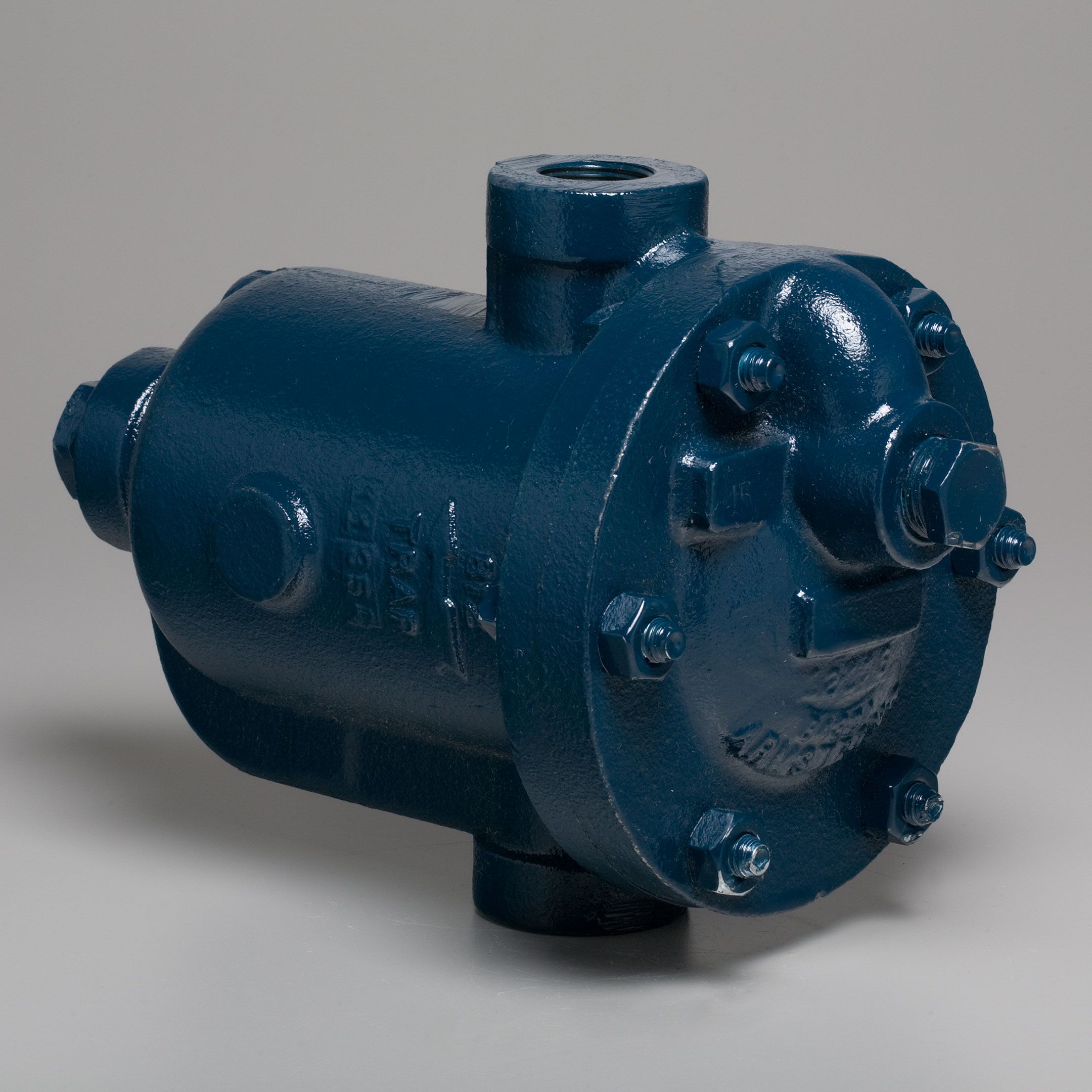

Armstrong C5318-1 812 Inverted Bucket Trap 15 PSI 5/16 Orifice

Product Description

The Armstrong inverted bucket steam trap model 812 features a three-fourths pipe connection in an in-line horizontal setup. This configuration helps in allowing steam to flow into the bottom of the trap while the condensate discharges from the top. The design utilizes a simple leverage system using the bucket's weight to operate the valve against pressure. This model has a maximum operating pressure rating of 15 psi.

• Cast iron construction
• Designed for handling dirt and venting air efficiently
• Capacity of 2,100 pounds per hour

Product Highlights

The Armstrong 812 steam trap is suitable for heat exchange equipment due to its ability to quickly purge air and non-condensable gases. This trap's robust design offers excellent resistance to wear, corrosion, and shock from hydronic systems.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: C5318-1

Technical Specifications

• Series: 800 Series
• Steam Trap Type: Inverted Bucket
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4
• Steam Trap Mounting: In-Line Horizontal
• Max Pressure: 15 psi
• Orifice Size: 5/16
• Weight: 14.80
