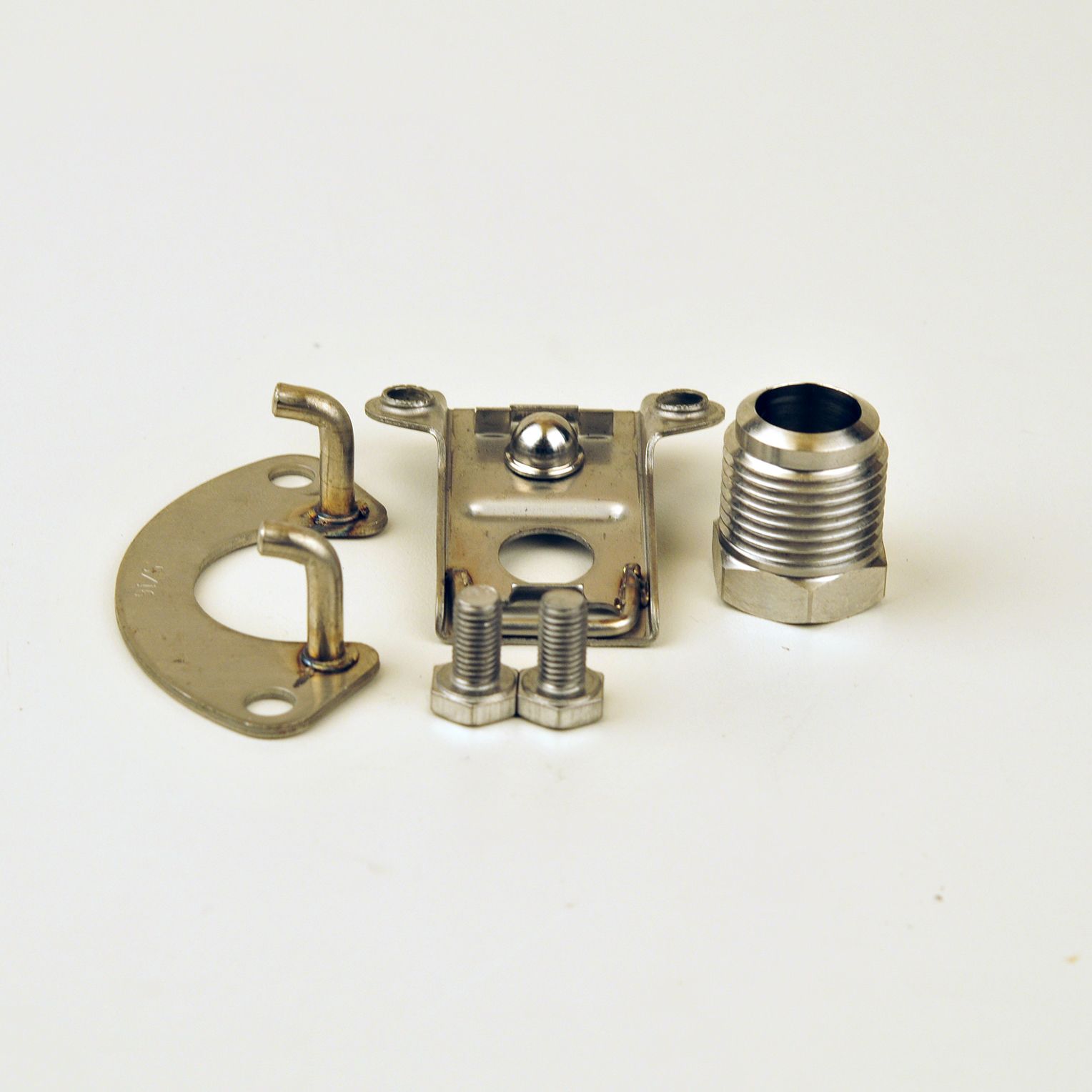

Armstrong B1671-3 Bucket Mechanism & Seat for 213, 313, 413, 813, 863 & 883 Traps

Product Description

The Armstrong International B1671-3 is designed for use with models 213, 313, 413, 813, 863, and 883 inverted bucket traps. It features a 5/16 inch orifice and operates at a pressure of up to sixty pounds. This bucket mechanism and seat are crucial components of steam traps, functioning as a pressure change assembly that connects with the inverted bucket. When steam fills the bucket, pressure keeps the lever elevated, closing the seat. As the steam condenses, the bucket drops, opening the seat to allow condensate and air to escape. Regular replacement every five to seven years is recommended for optimal performance.

• Compatible with Armstrong traps in the 200, 300, 400, 800, and 900 series.
• Key component in maintaining efficient steam trap operation.
• Ensures reliable drainage of condensate and air.

Product Highlights

The B1671-3 mechanism maintains the operation of steam traps efficiently, ensuring longevity and effective condensate management.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: B1671-3

Technical Specifications

• Steam Trap Series Repaired: 200 Series, 300 Series, 400 Series, 800 Series, 900 Series
• Steam Trap Model Repaired: 213, 313, 413, 813, 863, 883
• Weight: 0.05 lbs
