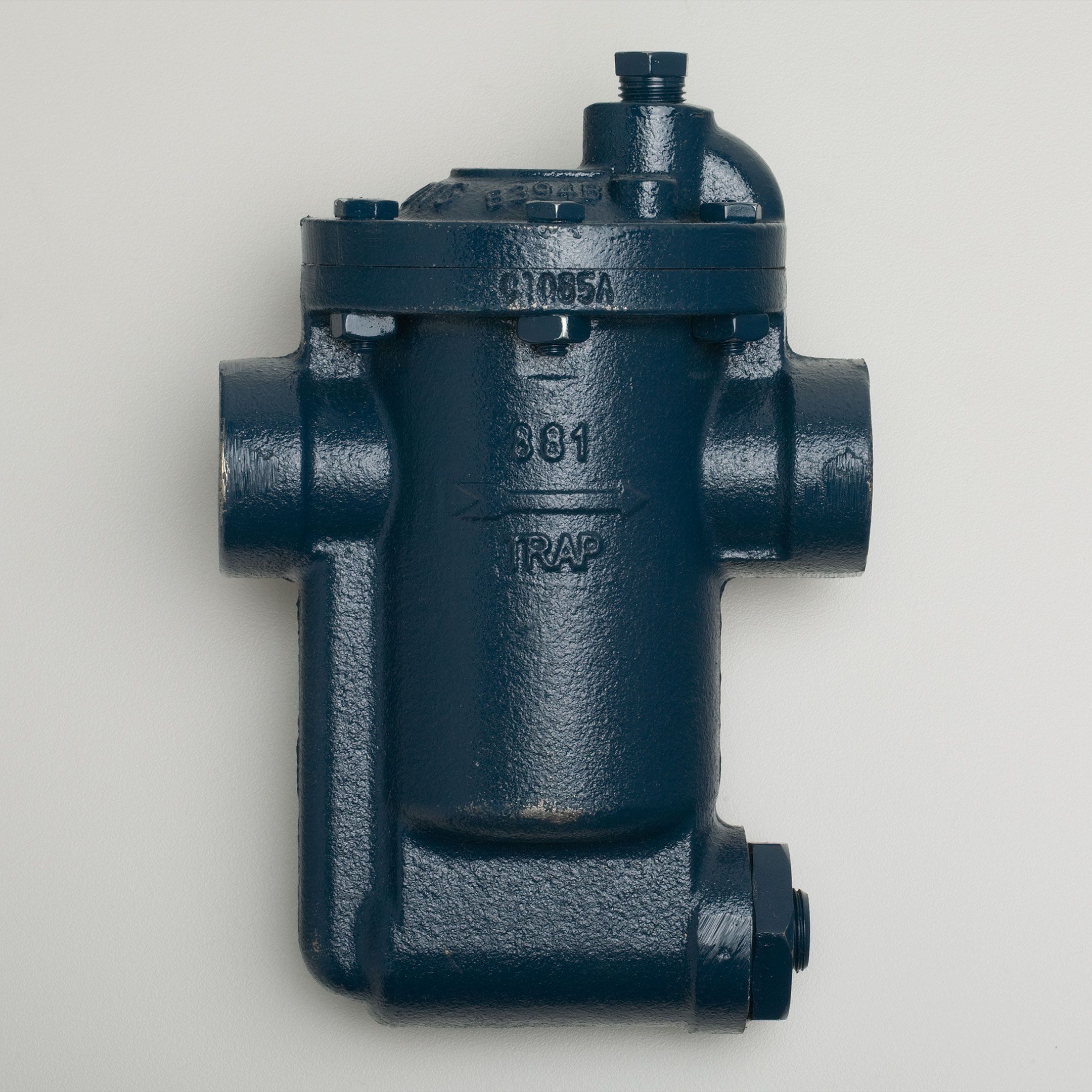

Armstrong Air D502717 Inverted Bucket Steam Trap 1 Inch NPT 70 PSI

Product Description

The Armstrong Air model 881 is a robust inverted bucket steam trap designed for high-efficiency steam trapping in industrial settings. Engineered with a 1 inch NPT in-line horizontal connection, this cast iron trap is optimal for applications requiring durable steam management solutions.

• Features a unique in-line horizontal configuration for streamlined installation.
• Constructed from high-grade cast iron for maximum durability and corrosion resistance.
• Includes an integral strainer to enhance operational efficiency and reliability.

Product Highlights

The model 881 steam trap efficiently handles capacities up to 950 pounds per hour, making it suitable for heat exchange systems requiring quick air venting. Its design minimizes wear and allows for effective operation even under varying back pressures.

Product Information

Standard Information

• Brand: Armstrong Air
• Model: 881
• Series: 880 Series

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 1 inch NPT
• Max Pressure: 70 psi
• Orifice Size: 5/32 inch
• Weight: 6 pounds
