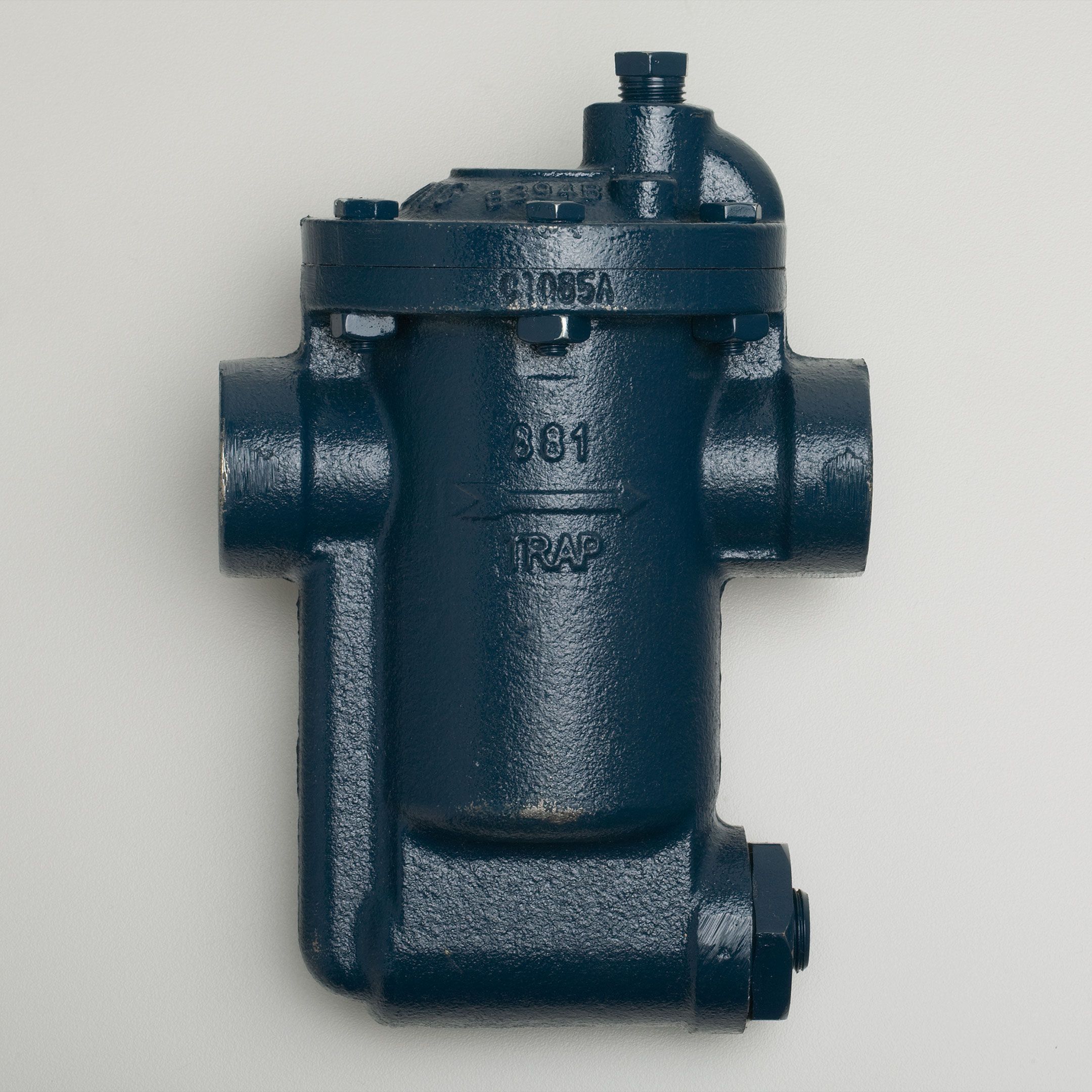

Armstrong Air D501165 Armstrong 881 Inverted Bucket Trap with Strainer 1 Inch NPT 15 PSI 1/4 Inch Orifice D501165

Product Description

The Armstrong 881 Inverted Bucket Steam Trap, model D501165, enhances system efficiency with its robust cast iron build and 1 inch NPT in-line horizontal configuration. This steam trap is designed to manage steam condensation efficiently with a maximum operating pressure of 15 psi and a 1/4 inch orifice.

• Includes an integral strainer to filter out particulate matter.
• Capable of processing up to 1,060 pounds of condensate per hour.
• Highly resistant to wear, corrosion, and hydronic shocks.

Product Highlights

Known for its reliability in high-demand applications, this device is suitable for heat exchange equipment requiring rapid venting of air and non-condensable gases. Its durability and back pressure operability make it an excellent choice for industrial applications.

Product Information

Standard Information

• Brand: Armstrong Air
• MPN: D501165
• Model: 881

Technical Specifications

• Series: 880 Series
• Material: Cast Iron
• Connection Size: 1 inch NPT
• Mounting: In-Line Horizontal
• Maximum Pressure: 15 psi
• Orifice Size: 1/4 inch
• Weight: 6.00 lbs
