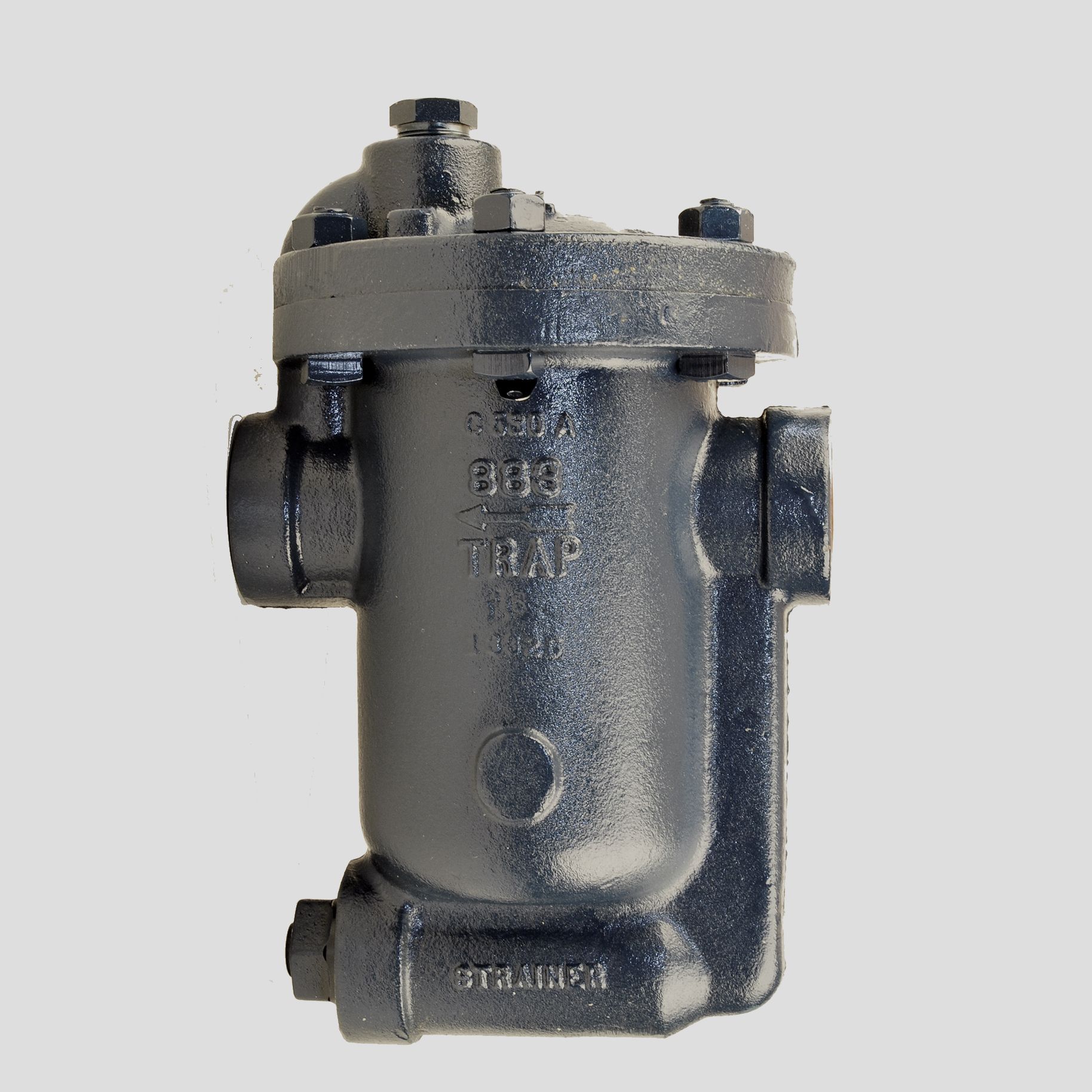

Armstrong Air D500078 Armstrong 883 Inverted Bucket Trap with Strainer 1-1/4 inch NPT 15 PSI 1/2 inch Orifice Replacement D500078

Product Description

Explore the Armstrong Air D500078, an inverted bucket steam trap designed for optimal steam condensate management. This model features a robust cast iron construction and is equipped with a 1-1/4 inch NPT in-line horizontal connection. The trap benefits from an integral strainer which efficiently filters out impurities, ensuring a smooth operation.

• High resistance to wear and corrosion
• Efficient air and non-condensable gas venting capabilities
• Durable heavy-duty stainless steel bucket included

Product Highlights

The Armstrong 883 is engineered to handle up to 3,900 pounds of steam per hour, operating at a maximum pressure of 15 PSI. Its inverted bucket mechanism provides reliable performance against back pressure and is exceptionally effective in dirt handling and air purging.

Product Information

Standard Information

• Brand: Armstrong International
• Model: 883
• Series: 880 Series

Technical Specifications

• Body Material: Cast Iron
• Connection Size: 1-1/4 inch NPT
• Max Pressure: 15 PSI
• Orifice Size: 1/2 inch
• Weight: 31.00 pounds
