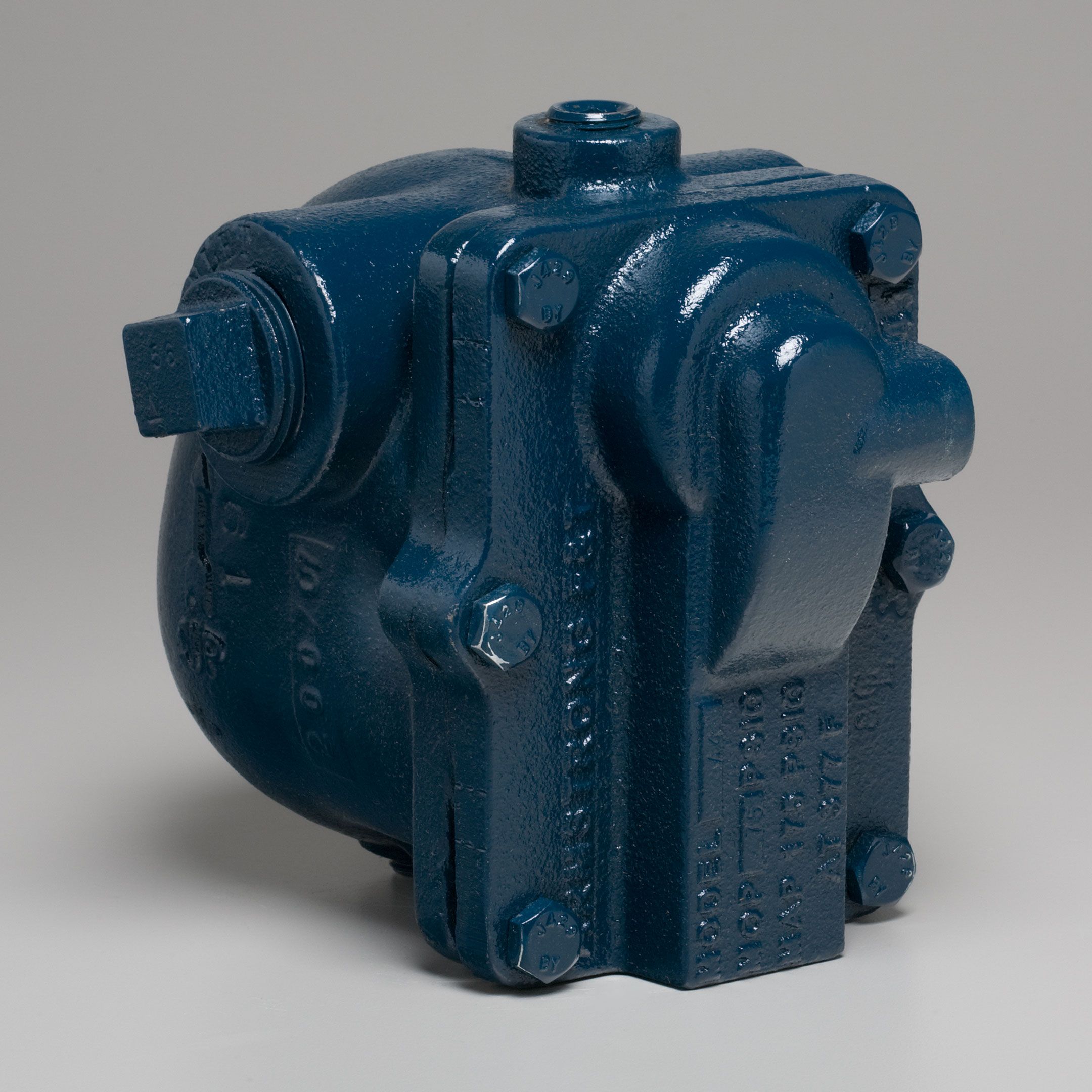

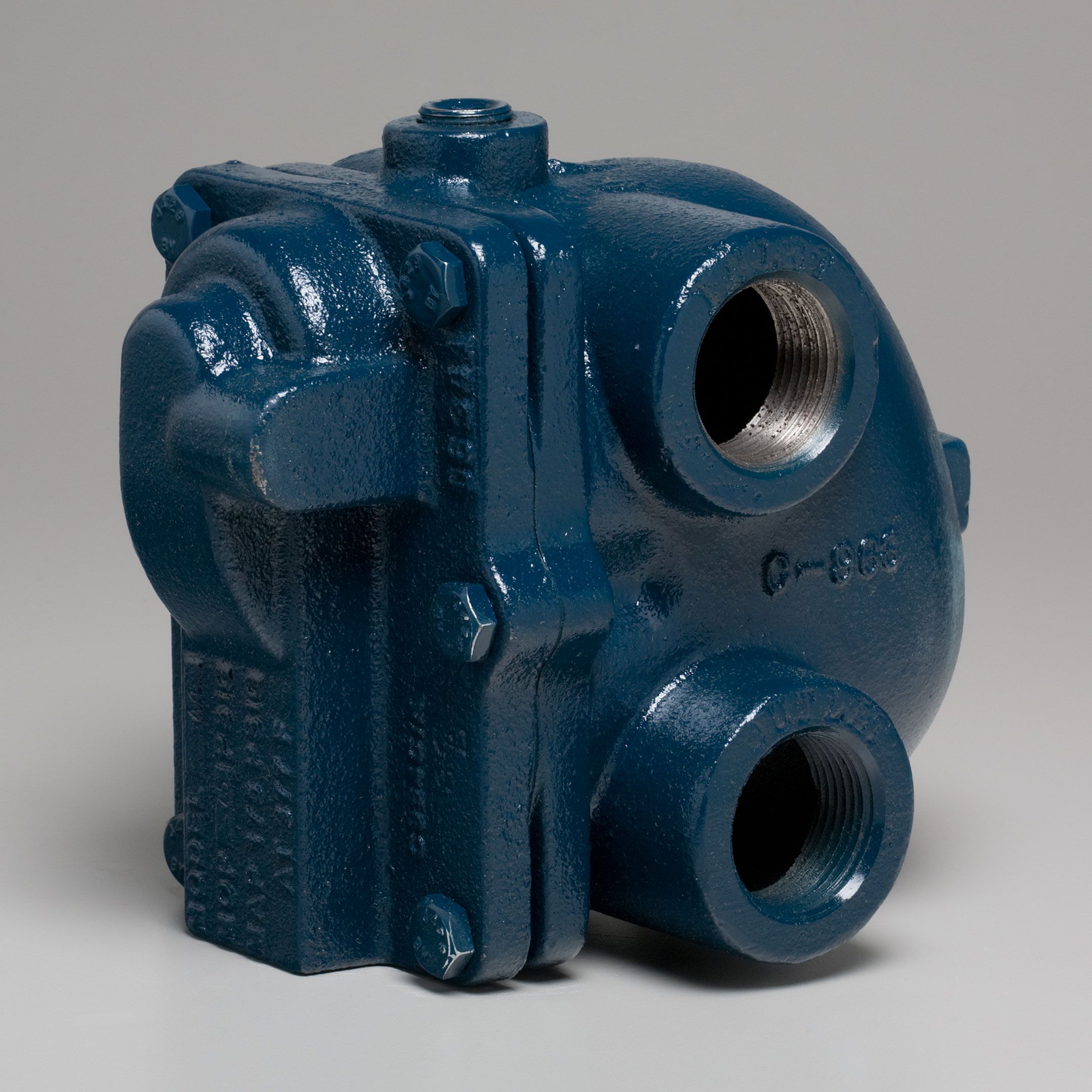

Armstrong D500057 75-A6 75 psi (1-1/2) F&T Trap

Product Description

The Armstrong float and thermostatic steam trap, model 75-A6, features a one and one-half inch trap connection with a same side configuration. This model allows steam to enter from one side while discharging condensate from the same side. The A Series F&T traps are designed for industrial use and feature a balanced pressure phosphor-bronze bellows, caged in stainless steel. It is constructed from cast iron and operates up to seventy-five psi with a capacity of four thousand two hundred pounds per hour.

• Max operating pressure: 75 psi
• Connection size: 1-1/2 inches
• Body material: Cast iron

Product Highlights

This steam trap is ideal for applications demanding rapid venting of air and non-condensable gases. It effectively manages modulating pressures and adapts to varying loads while maintaining efficiency during start-up operations.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500057

Technical Specifications

• Model: 75-A6
• Series: A Series
• Steam Trap Type: Float & Thermostatic
• Steam Trap Connection Size: 1-1/2 inches
• Steam Trap Mounting: Same Side
• Max Pressure: 75 psi
• Weight: 18.75 pounds
