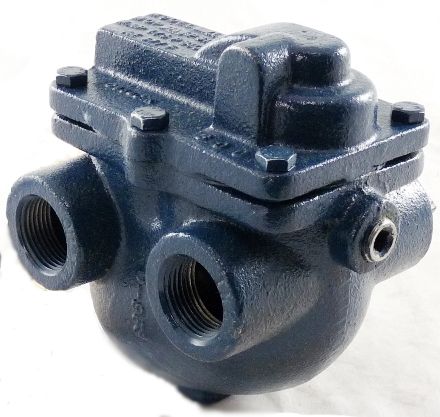

Armstrong D500055 125-A4 Float & Thermostatic Steam Trap 1 NPT

Name: Armstrong D500055 125-A4 Float & Thermostatic Steam Trap 1 NPT
Brand: ARMSTRONG AIR
SKU: D500055
Price: 633.64 USD
Availability: InStock

Brand: ARMSTRONG AIR

SKU: D500055

Availability: In Stock

Ships Same Day if Ordered by 12pm

Quantity:

$633.64; $633.64
Unit price: per

Manuals:

Manual

Manual

HAVE A QUESTION?

Our team is ready to help!

215-326-9845

Chat

Secure Payments
Easy Returns
Expert Advice
Fast Shipping

Description

Product Description

The Armstrong float and thermostatic steam trap, model 125-A4, is built for efficient steam management. This product has a one-inch trap connection, designed for both steam entry and condensate discharge from the same side.

Cast iron construction for durability
125 psi maximum pressure rating
Handles a capacity of 1,275 pounds per hour

Product Highlights

The 125-A4 model is ideal for industrial applications, including heat exchange equipment. It allows quick venting of air and non-condensable gases, ensuring optimal operation under varying load conditions.

Product Information

Standard Information

Brand: Armstrong International
Model: 125-A4

Technical Specifications

MPN: D500055
Series: A Series
Weight: 9.52 pounds
Body Material: Cast Iron
Steam Trap Connection Size: 1 inch
Max Pressure: 125 psi
Orifice Size: 1/8 inch
Steam Trap Mounting: H-Pattern, Same Side

Vendor: ARMSTRONG AIR
