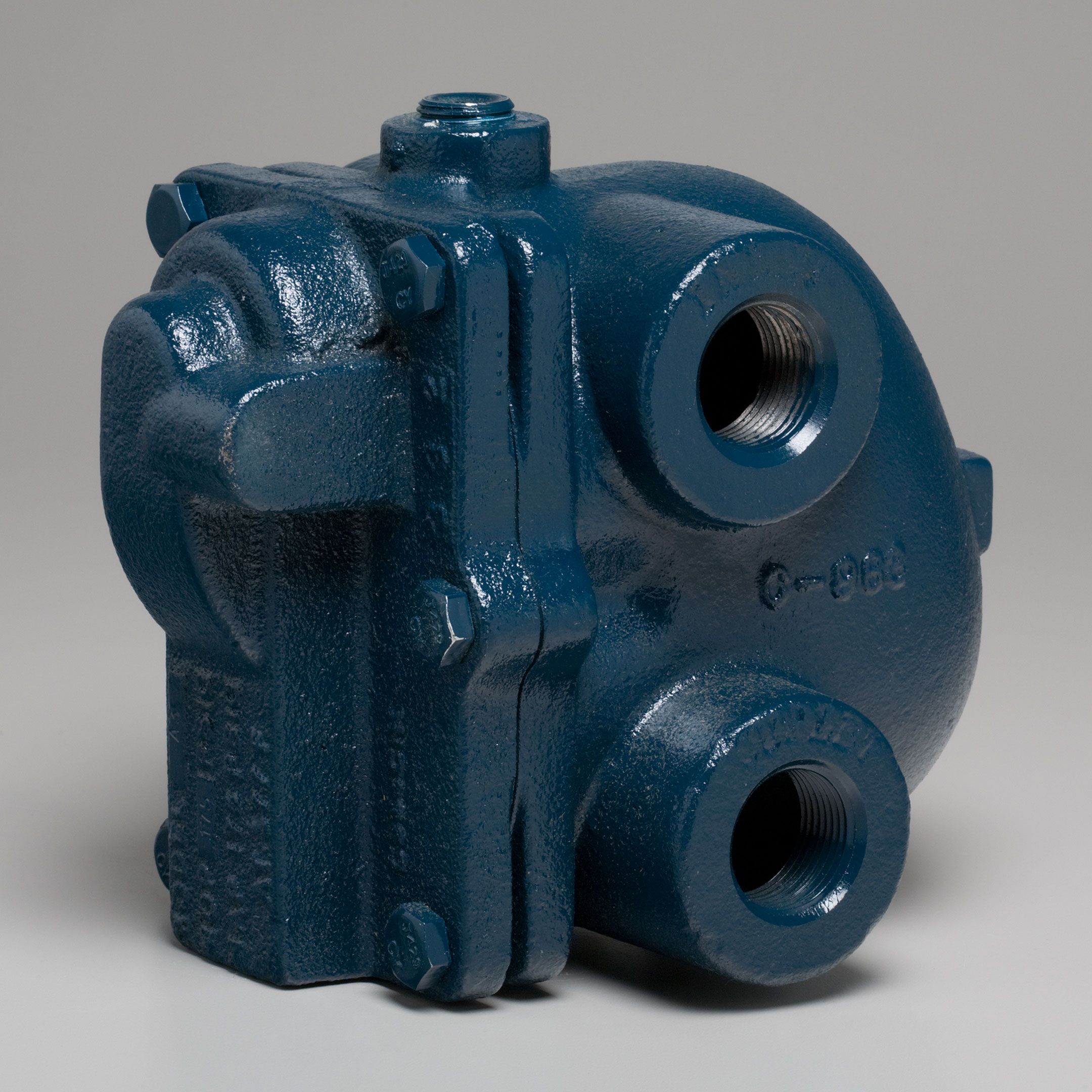

Armstrong D500053 Model 175-A3 175 psi Cast Iron F&T Trap

Product Description

The Armstrong float and thermostatic steam trap, model 175-A3, is engineered for effective performance in managing steam systems. This trap features a three-fourths inch trap connection, designed to allow steam entry and condensate discharge from the same side. Made from cast iron, the trap can withstand a maximum operating pressure of 175 psi, making it suitable for various industrial applications.

• Trap capacity: 1,150 pounds per hour
• Designed for heat exchange equipment
• Balanced pressure phosphor-bronze bellows caged in stainless steel

Product Highlights

This steam trap is ideal for modulating pressure settings and can effectively vent air and gases at low pressures. It is designed to handle startup air loads and operate against back pressure, ensuring efficient performance across varying conditions.

Product Information

Standard Information

• Brand: Armstrong International
• MPN: D500053

Technical Specifications

• Model: 175-A3
• Series: A Series
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inches
• Steam Trap Mounting: Same Side
• Max Pressure: 175 psi
• Weight: 9.50 pounds
