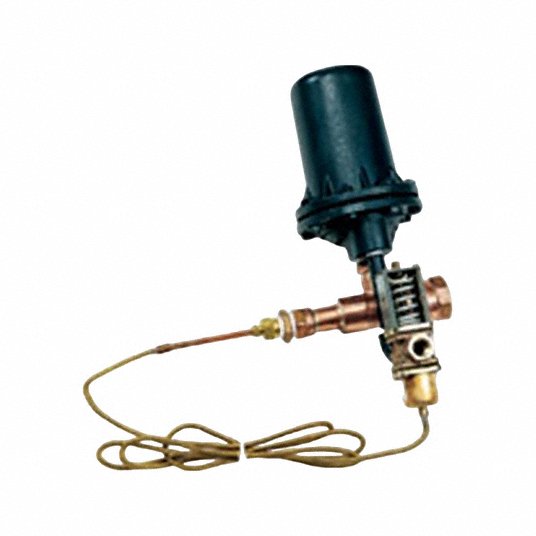

ARMSTRONG AIR D202122 Armstrong Air Condensate Cooler CC-5

Product Description

The Armstrong Air Condensate Cooler CC-5, MPN D202122, is suitable for condensate applications. It is built with a cast iron body and brass controller for durability.

• Capacity: five gallons per minute
• Adjustable temperature range: one hundred fifteen to one hundred eighty degrees Fahrenheit
• Includes multiple inlet and outlet connections

Product Highlights

The cooler maintains a factory preset temperature of one hundred thirty-five degrees Fahrenheit. It can handle various condensate needs efficiently.

Product Information

Standard Information

• Application: Condensate
• Body Material: Cast Iron

Technical Specifications

• Capacity: five gallons per minute
• Cold Water Inlet Size: three-eighths inch
• Controller Material: Brass
• Factory Preset Temperature: one hundred thirty-five degrees Fahrenheit
• Field Adjustable Range: one hundred fifteen to one hundred eighty degrees Fahrenheit
• Hot Condensate/Water Inlet Size: three-fourths inch
• Max Cold Water Pressure: one hundred fifty psig
• Model: CC-5
• Sensing Bulb Material: Bronze
• Tempered Outlet Size: one and one-fourth inch
• Vent/Overflow Connection Size: three-fourths inch
