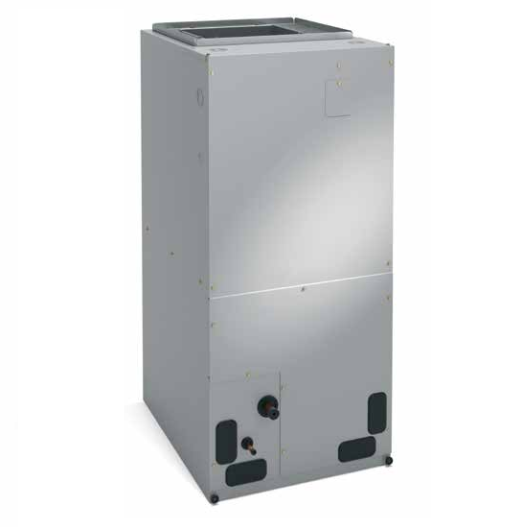

Armstrong Air BCE5C48MA1P-50 4 Ton - Multi-Position - Air Handler

Product Description

The Armstrong Air BCE5C48MA1P-50 is a 4-ton multi-position air handler designed for reliable HVAC performance. This unit features a permanent split capacitor motor for efficient air flow all year round. For best results, use this air handler with an Armstrong Air heat pump or air conditioner.

• 4 Ton capacity
• Multi-position installation options
• Designed for integration with heat pumps and air conditioners

Product Highlights

This air handler is engineered for optimal comfort and efficiency in residential heating and cooling applications.

Product Information

Standard Information

• Brand: Armstrong Air
• MPN: BCE5C48MA1P-50

Technical Specifications

• Nominal Capacity: 4 ton
• Heating Capacity: 65500 Btu/hr
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• Flow Rate: 1895 cfm
• Motor Type: Permanent Split Capacitor
• Dimensions: 21-1/2 in W x 22 in D x 55 in H
• Filter Size: 18 x 20
• Fuse Size: 110 A
• Return Air Opening: 19-1/4 in W x 20-3/8 in D
• Supply Air Opening: 19-1/2 in W x 14-1/2 in H
• Certifications: AHRI Certified, cETLus Listed
