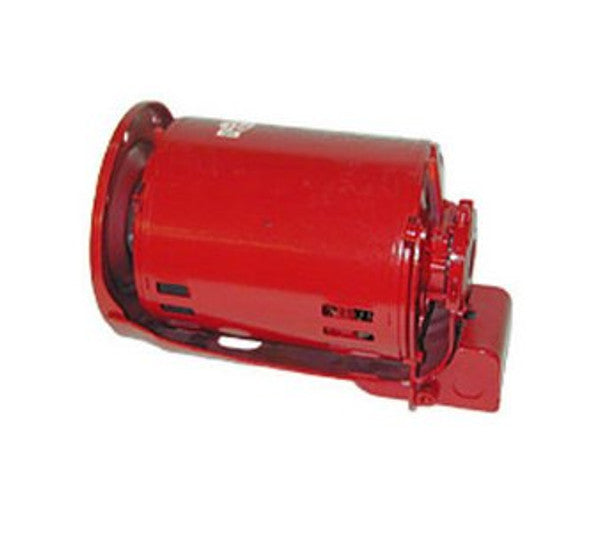

Armstrong Air 816678-062 Motor Assembly 1.5 HP 115/230V ODP

Product Description

The Armstrong Air 816678-062 is a reliable motor assembly for Armstrong circulator pumps. This motor operates efficiently at both 115 and 230 volts with a frequency of 60Hz. With a power rating of 1.5 horsepower, it is built to handle demanding tasks.

• Compatible with Armstrong 1050, 1060, and S&H series pumps.
• Operates at 115/230V, 60Hz, single phase.
• ODP (Open Drip Proof) enclosure for durability.

Product Highlights

The motor assembly is designed for rigid mounting and offers versatility across multiple pump models, ensuring reliable operation in various applications.

Product Information

Standard Information

• Brand: Armstrong Air
• MPN: 816678-062

Technical Specifications

• Horse Power: 1.5 HP
• RPM: 1750 RPM
• Input Voltage: 115/230V
• Frequency: 60Hz
• Phase: Single
• Enclosure: ODP
• Frame: 56C
• Compatible Series: 1050/1060 Series, S&H Series
• Compatible Models: S69, H68, H65, H67, 1060-1-1/2D, 1060-2D, 1060-3D
