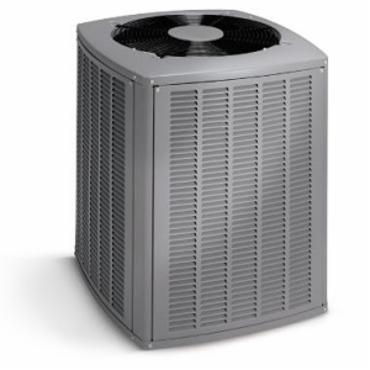

Armstrong Air 4SHP16LS160P 16 SEER 2 Stage Heat Pump 5 Ton

Product Description

The Armstrong Air 4SHP16LS160P is a high-efficiency 2-stage heat pump designed for reliable performance. This unit delivers energy-efficient heating and cooling, making it ideal for various climates. The 5-ton capacity allows it to handle larger spaces effectively. Built with advanced technology, the heat pump ensures optimal comfort throughout the year.

• Two-stage heating and cooling
• High-efficiency ratings with SEER of 16
• AHRI Certified and ETL Listed

Product Highlights

This heat pump is engineered to last while providing consistent comfort. It is recommended by HVAC professionals due to its reliability and energy-saving features.

Product Information

Standard Information

• Brand: Armstrong Air
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: High Efficiency 2-Stage
• Series: Pro Series 4SHP16LS
• Material: Steel
• Motor HP: 1/3 hp
• Flow Rate: 1920 cfm
• Dimensions: 35-3/4 inches W x 37-3/4 inches D x 43-3/4 inches H
• EER Rating: 12
• SEER Rating: 16
• Sound Level: 74 dBA
• Power Source: 208/230 VAC, 35.1 A, 1 ph, 60 Hz
• Certifications: AHRI Certified, ETL Listed
• Cooling Capacity: 58000 Btu/hr
• Heating Capacity: 58000 Btu/hr
• Nominal Capacity: 5 ton
• Refrigerant Type: R-410A
• Suction Line Size: 1-1/8 inches
• Discharge Line Size: 3/8 inches
• Temperature Rating: 125 deg F
