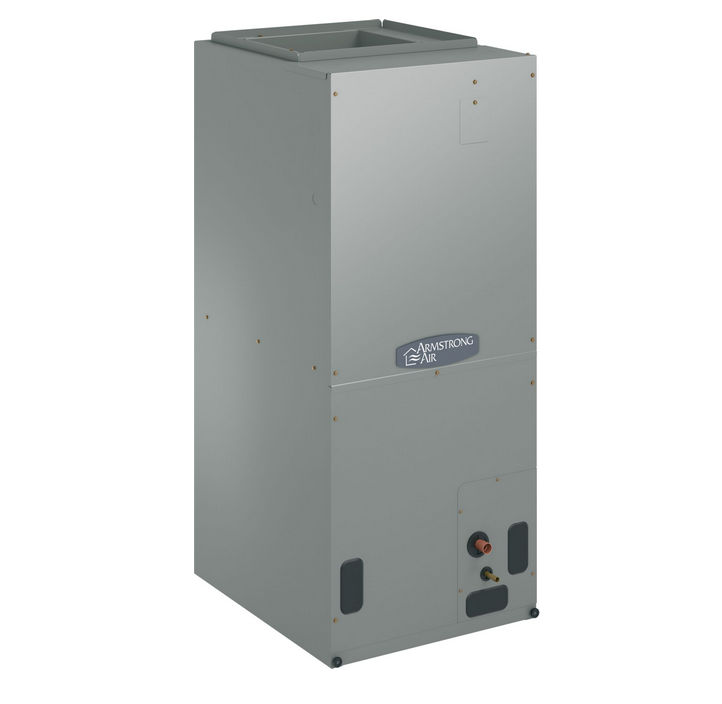

Armstrong Air BCE5C36MA1P-50 BCE5C PSC Air Handler 208/230 VAC, 3 ton

Product Description

The Armstrong Air BCE5C36MA1P-50 is a multi-position piston compact air handler designed for efficient air distribution. This model features a permanent split capacitor (PSC) motor that ensures consistent airflow year-round.

• Nominal capacity of three tons
• Engineered for compatibility with Armstrong Air heat pumps and air conditioners
• Equipped with anti-microbial protection for enhanced hygiene

Product Highlights

This air handler combines reliability and efficiency, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Armstrong Air
• Manufacturer: Allied Air Enterprises

Technical Specifications

• Type: Multi-Position Piston Compact
• Series: 5 Series
• Material: Galvanized Steel
• Flow Rate: 1560 cfm
• Fuse Size: 80 A
• Dimensions: 21-1/2 in W x 22 in D x 53.63 in H
• Motor Type: Permanent Split Capacitor
• Filter Size: 18 x 20
• Control Type: PSC
• Power Source: 208/230 VAC, 1 ph, 60 Hz
• Certifications: AHRI Certified, cETLus Listed
• Heating Capacity: 49100 Btu/hr
• Liquid Line Size: 3/8 in
• Nominal Capacity: 3 ton
• Suction Line Size: 3/4 in
• Return Air Opening: 19-1/4 in W x 20-3/8 in D
• Supply Air Opening: 19-1/2 in W x 14-1/2 in H
