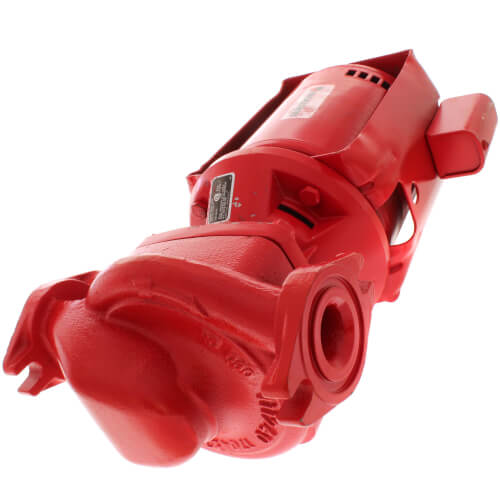

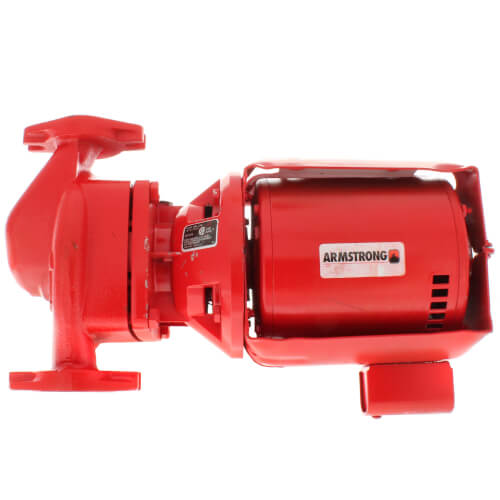

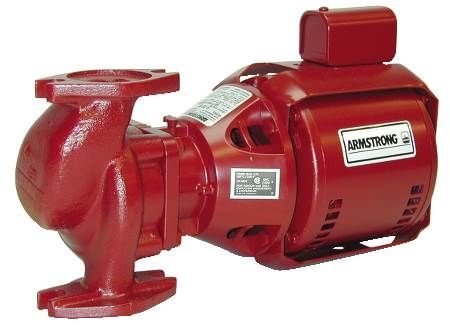

Armstrong Pumps 174035MF-113 Hot Water Circulating Pump 1/6 HP 18 gpm

Product Description

The Armstrong Pumps 174035MF-113 Hot Water Circulating Pump is designed for efficient water circulation in hydronic heating systems. This pump, with an MPN of 174035MF-113, operates with 1/6 HP and supports a maximum flow rate of 22 gpm at 10 feet.

• Durable cast iron construction
• Suitable for hydronic heating and cooling
• Modular construction for ease of maintenance

Product Highlights

The Armstrong 174035MF-113 is a reliable hot water circulating pump, ideal for both domestic and industrial applications. Its proven design ensures long-lasting performance. The pump features a radially-split body, oversized shaft, and positive mechanical seal.

Product Information

Standard Information

• Brand: Armstrong Pumps
• MPN: 174035MF-113

Technical Specifications

• Connection Size: 1 in NPT
• Dimension: 15-1/4 in W x 13-1/4 in H
• Flow Rate: 22 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/6 HP
• Item Name: Circulator Pump
• Material: Cast Iron
• Maximum Feet of Head: 17-1/2 ft
• Model: H-41
• Mounting: Resilient
• Phase: 1 phase
• Pressure Rating: 175 psig
• RPM: 1800 RPM
• Series: H
• Temperature Rating: 225 deg F
• Type: In-Line
• Voltage Rating: 115 VAC
