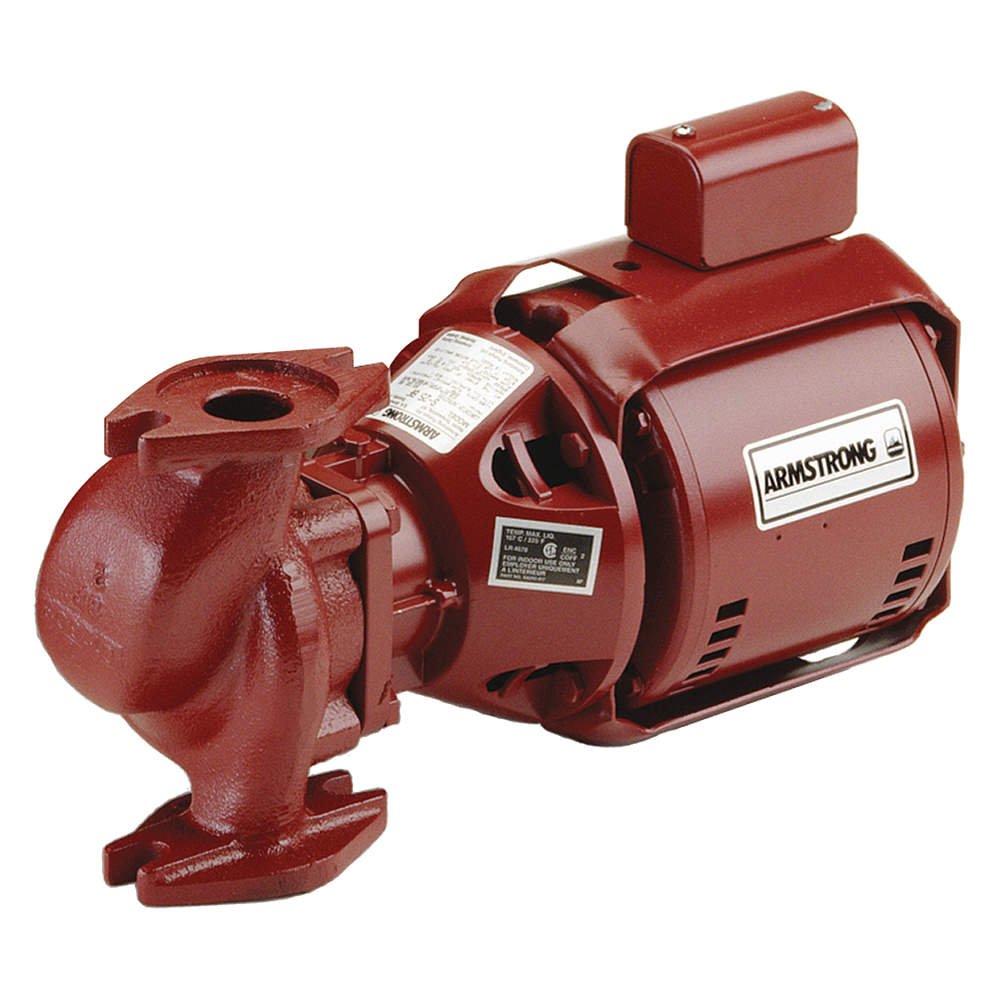

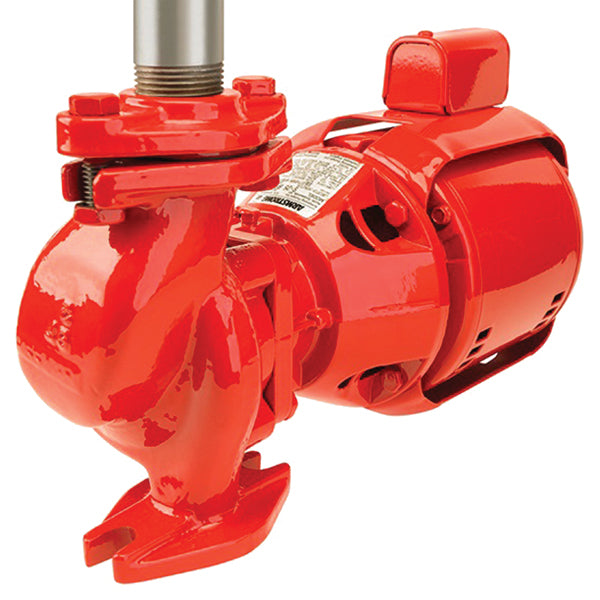

Armstrong 174033MF-013 S-35 BF Cast Iron In-Line Pump 1/6 hp

Product Description

The Armstrong 174033MF-013 is a hydronic circulating pump designed for water circulation in heating systems. This model is an in-line pump suitable for various applications including hydronic heating and cooling. The pump operates on a one-sixth horsepower motor, specifically engineered to support efficient water flow in heating systems.

• High performance in hydronic heating and cooling.
• Constructed from durable cast iron.
• Capable of handling a maximum flow rate of seventy-five gallons per minute.

Product Highlights

This pump features a compact design that fits into tight spaces and provides efficient water circulation. It is equipped with a thermal protection system to ensure safe operation and longevity.

Product Information

Standard Information

• Brand: Armstrong Pumps
• MPN: 174033MF-013

Technical Specifications

• HP Rating: 1/6 hp
• Voltage Rating: 115 VAC
• Phase: Single Phase
• Max Flow Rate: 75 gpm
• Max Head: 11 ft
• Housing Material: Cast Iron
• Shut-Off: 45 ft
• Height: 6.5 in
• Length: 15 in
• Width: 12.5 in
• Max Operating Pressure: 125 psi
• Temperature Rating: 225 degrees F
• Impeller Material: 30% Glass-Filled Noryl
• Shaft Material: Stainless Steel
• Connection Style: NPT/Flange
