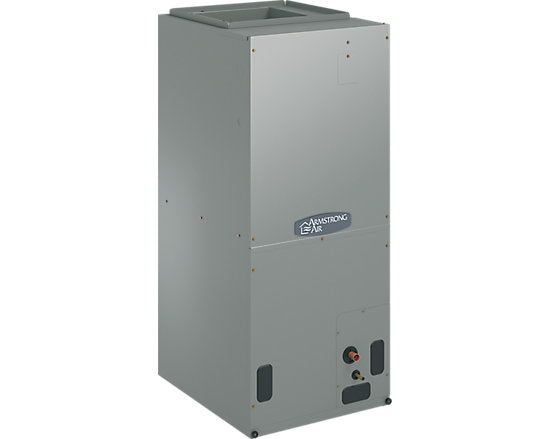

Armstrong Air 16G93 BCE5E30MA4X 2.5 Ton Enhanced Constant Torque Upflow/Downflow/Horizontal Omniguard Manufactured Home Air Handler With TXV

Product Description

The Armstrong Air 16G93 is a 2.5 ton enhanced constant torque air handler designed for upflow, downflow, and horizontal applications. This unit provides efficient and consistent airflow while ensuring a quieter operation. The upgraded design includes an antibacterial drain pan to help eliminate odor-causing mold and bacteria. Optional heat strips can be added for extra warmth on cold days.

• Built-in antibacterial treatment in the drain pan
• Insulated cabinet for reduced noise and airflow loss
• Offers Omniguard Total Corrosion Protection Technology

Product Highlights

Reliable airflow and lower operational costs. This unit operates efficiently, making it ideal for residential use.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: 16G93

Technical Specifications

• Cooling Capacity: 2.5 Ton
• Filter Size: 15 x 20 inches
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Max Electric Heat Available: 15 kW
• Metering Device: TXV
• Motor: Constant Torque
• Motor Size: 1/2 hp
• Power Source: 208-230V/60Hz/1Ph
• Refrigerant: R-401A
• Series: BCE5E
