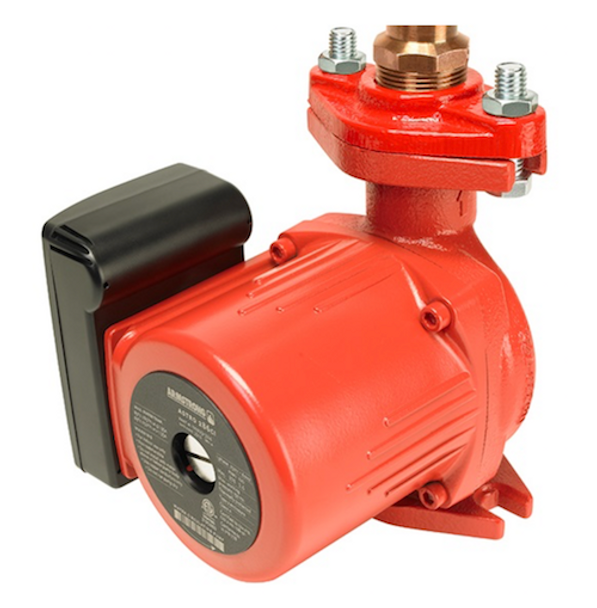

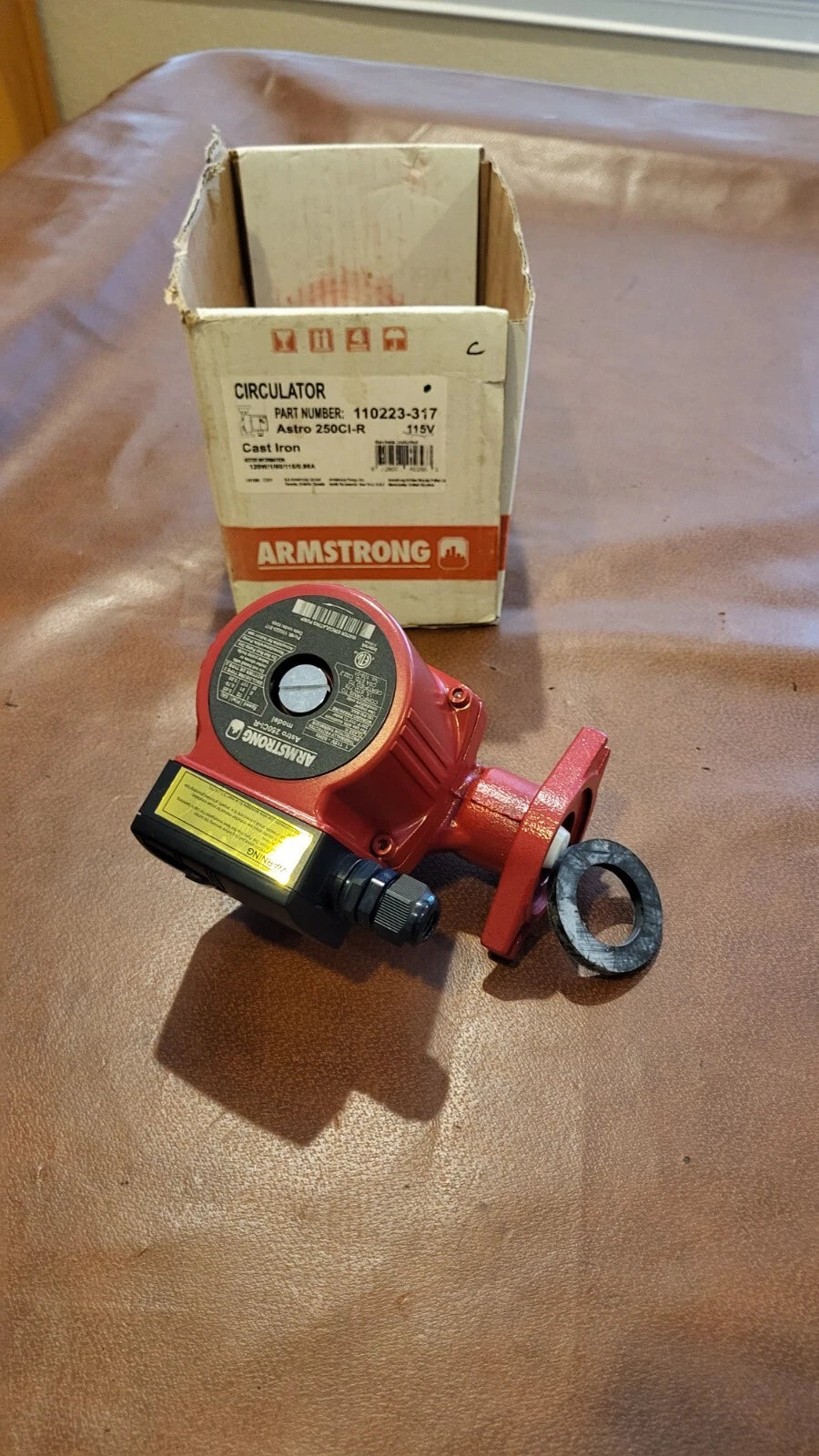

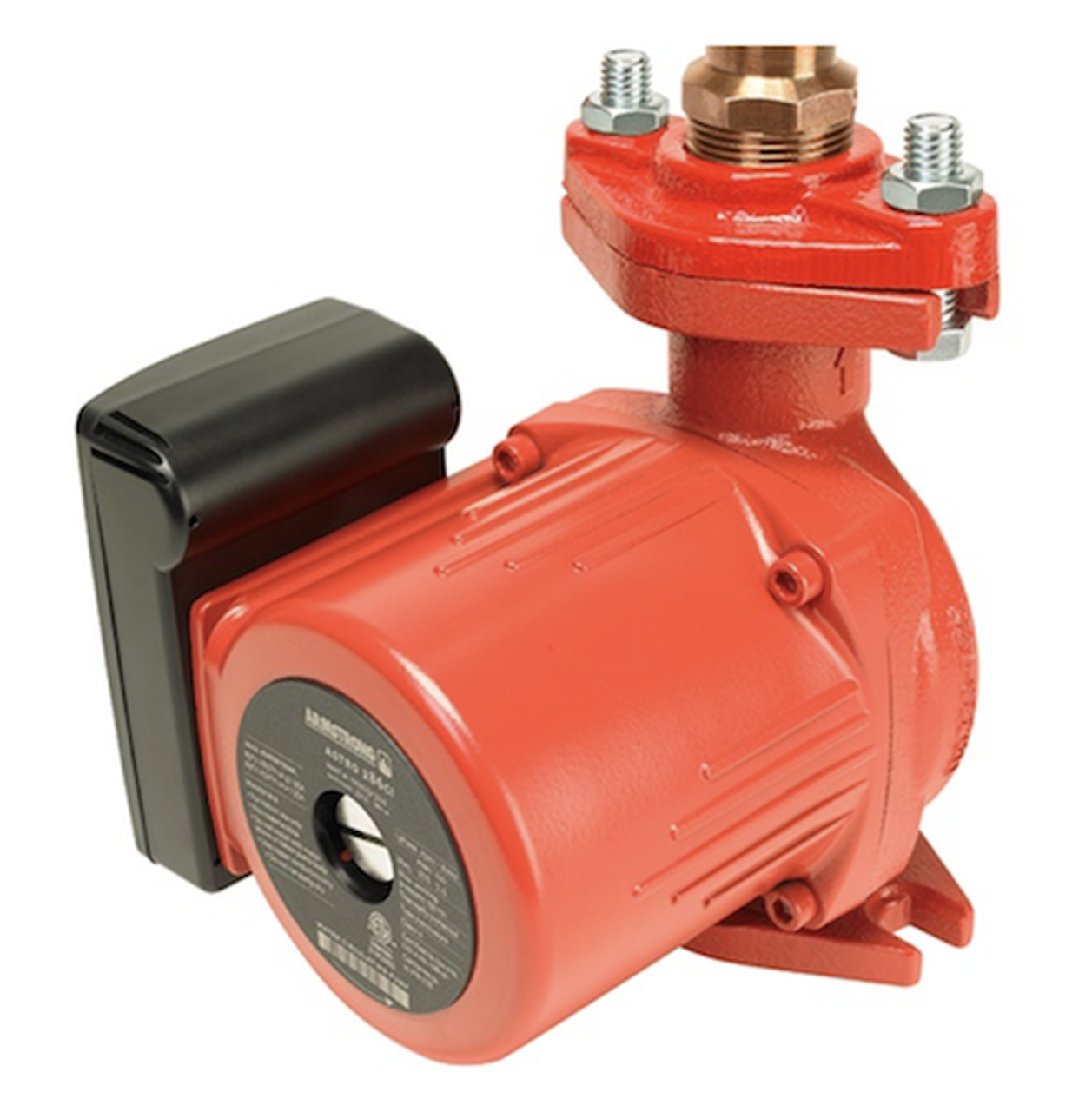

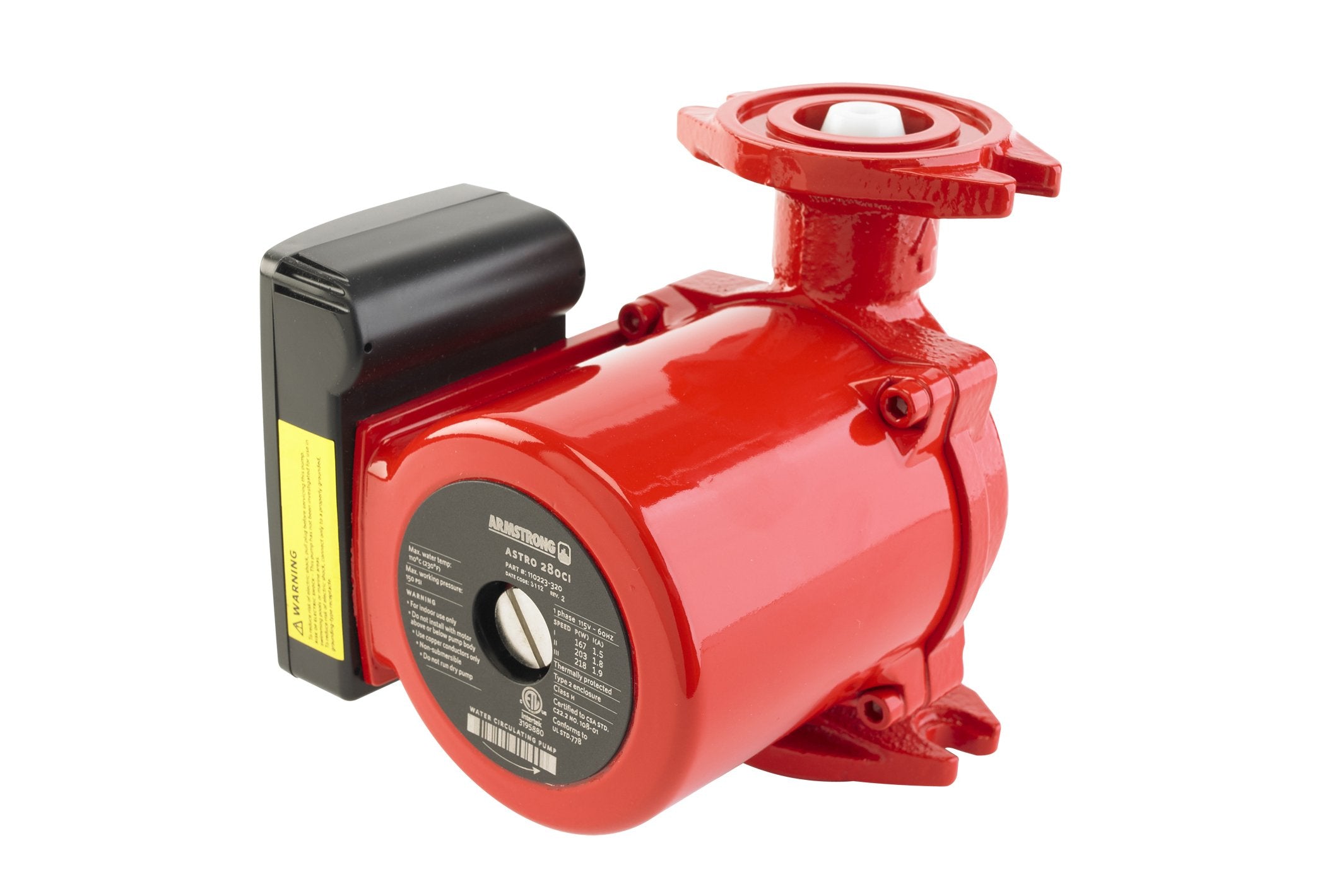

Armstrong Air 110223-317 Circulator Pump 3-speed Astro 2

Product Description

The Armstrong Air 110223-317 is a circulator pump from the Astro 250CI-R series, intended for closed-loop hydronic and solar heating or cooling systems. This pump has a cast iron housing and operates at three different speeds, making it suitable for various applications. It efficiently circulates water or ethylene-glycol solutions in residential, small industrial, and commercial environments.

• Designed to handle water or ethylene-glycol solutions.
• Durable cast iron construction.
• Three-speed operation for versatile use.

Product Highlights

This circulator pump provides efficient liquid movement for heating and cooling challenges. It is quiet during operation and requires minimal maintenance, ensuring reliability.

Product Information

Standard Information

• Brand: Armstrong
• MPN: 110223-317

Technical Specifications

• Series: Astro 2
• Model: 250CI-R
• Application: Heating & Cooling
• Pump Type: Booster
• Mounting Type: In-Line
• Connection Type: Flanged
• Flange Connection Size(s): 1, 1-1/2, 1-1/4, 3/4
• Housing Material: Cast Iron
• Body Material: Cast Iron
• Voltage: 115V
• Phase: Single
• Hertz: 60Hz
• Speed: 3-speed
• Enclosure Type: ODP
• Horse Power: 1/20 H.P.
• RPM: 2800
• Load Amps: 0.95
• Max Flow (GPM): 18
• Flow Range (GPM): 0-18
• Max Heat (FT): 24
• Head Range (FT): 0-24
• Maximum Temperature: 230°F
• Max Fluid Temperature: 230°F
• Maximum Working Pressure: 150 PSI
