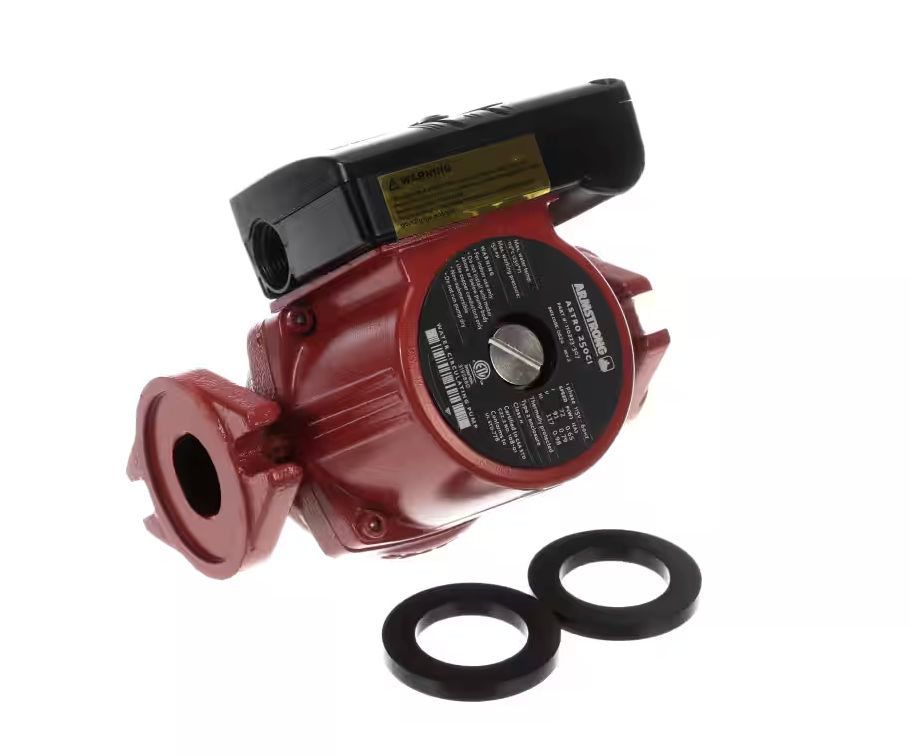

Armstrong 110223-307 Astro 250CI 3-Speed Cast Iron Circulator Pump, 115 VAC, 1/20 hp, 18 gpm, 24 ft

Product Description

The Armstrong 110223-307 Astro 250CI is a 3-speed cast iron circulator pump designed for residential heating or cooling, potable water systems, and water conservation. This pump provides adjustable performance with three selectable speeds, ensuring optimal operation for a variety of systems.

• Designed for quiet operation and zero maintenance
• Easy electrical connection with a simple terminal strip
• Three selectable speeds for versatile functionality

Product Highlights

Intended to circulate water or ethylene-glycol solutions in closed hydronic or solar heating systems, the Armstrong Astro 250CI pump features a cast iron volute with an e-coating for enhanced corrosion protection. It includes a pre-installed high-flow check valve, ceramic shaft and bearings, and an EPDM gasket for reliability and longevity.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• Amperage Rating: 0.98 A
• Connection Size: (2) 1/2 in Dia Bolt Hole Flange
• Dimension: 6 in W x 6.38 in H
• Flow Rate: 18 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/20 hp
• Impeller Material: Noryl
• Item Name: Circulator Pump
• Material: Cast Iron
• Maximum Feet of Head: 24 ft
• Model: Astro 250CI
• Phase: 1 ph
• Pressure Rating: 150 psi
• Series: Astro 2
• Temperature Rating: 230 deg F
• Type: 3-Speed
• Voltage Rating: 115 VAC
• Wattage: 117 W
