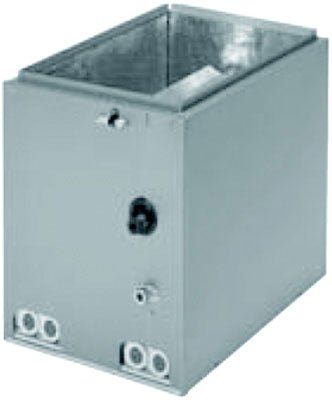

Armstrong Air 1.912109 EM1P23BG-1 Evaporator Coil 2 ton Nominal Upflow/Horizontal Air Flow

Product Description

The Armstrong Air 1.912109 EM1P23BG-1 Evaporator Coil is designed for efficient cooling in HVAC systems. This evaporator coil is classified as upflow/horizontal, ensuring versatility in its application. It features a cased enclosure that facilitates easy installation and maintenance.

• Upflow/horizontal design, offering installation flexibility
• Microban antimicrobial drain pan to resist mold and mildew
• Low water retention drain pan for minimized mold growth

Product Highlights

This evaporator coil integrates advanced features such as an external cabinet mounted distributor for easy orifice changes and fast TXV connections. The foil-face insulation simplifies cleaning and maintenance processes.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L5340

Technical Specifications

• Air Flow Type: Upflow/Horizontal
• Color: Platinum Gray
• Dimensions: 25-1/2 inches H x 17-1/2 inches W x 21 inches D
• Enclosure Type: Cased
• Liquid Line Size: 3/8 inches
• Manufacturing Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 2 ton
• Package Weight: 40.0 lb
• Refrigerant Type: R-22/R-410A
• Series: EM1P-1
• Suction Line Size: 3/4 inches
