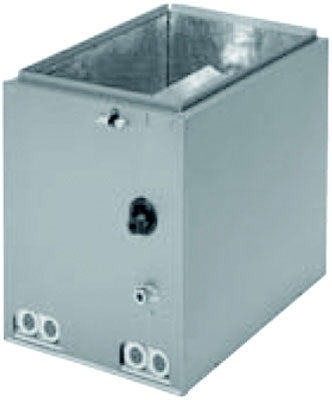

Armstrong Air 1.912104 Evaporator Coil 3.5 to 4 ton upflow/horizontal

Product Description

The Armstrong Air 1.912104 evaporator coil offers reliable performance for HVAC systems with a nominal capacity of three and a half to four tons. This coil is suitable for both upflow and horizontal air flow installations, providing flexibility for a variety of application needs.

• Microban antimicrobial protection in the drain pan
• Designed for easy installation and maintenance
• Lightweight build for simple handling

Product Highlights

This evaporator coil features an external cabinet-mounted distributor body that allows for quick changes to orifice sizes and simple TXV connections. It includes dual drain connections for versatile installation around furnace vents and utility connections.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L5349

Technical Specifications

• Air Flow Type: Upflow/Horizontal
• Enclosure Type: Cased
• Dimensions: 27-1/2 in H x 17-1/2 in W x 21 in D
• Nominal Capacity: 3.5 to 4 ton
• Package Weight: 45.0 lb
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Refrigerant Type: R-22/R-410A
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
