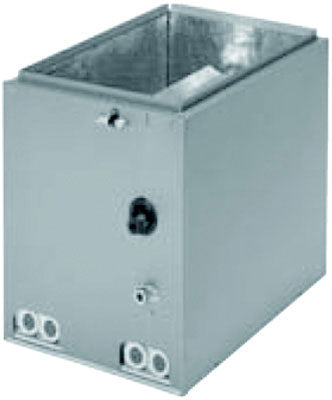

Armstrong Air 1.912061 EM1P24BG-1 Evaporator Coil 2 ton Nominal Replacement MPN

Product Description

The Armstrong Air EM1P24BG-1 evaporator coil is designed for efficient cooling in both upflow and horizontal applications. With a nominal capacity of two tons, this unit is ideal for residential and light commercial use. Its cased enclosure allows for easy installation and maintenance.

• Upflow/horizontal design for flexible installation.
• Microban antimicrobial protection in the drain pan.
• Built for easy drain connection and coil cleaning.

Product Highlights

This evaporator coil is designed with innovative features such as an interlocking door assembly and high-quality insulation, maximizing efficiency and minimizing air leakage. The drain pan's design prevents excessive water retention, reducing the risk of mold and mildew.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L5342

Technical Specifications

• Air Flow Type: Upflow/Horizontal
• Enclosure Type: Cased
• Nominal Capacity: 2 ton
• Dimensions: 25-1/2 inches H x 17-1/2 inches W x 21 inches D
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Refrigerant Type: R-22/R-410A
• Package Weight: 42.0 lb
• Mfg Standards/Approvals: AHRI Certified, cULus Listed
