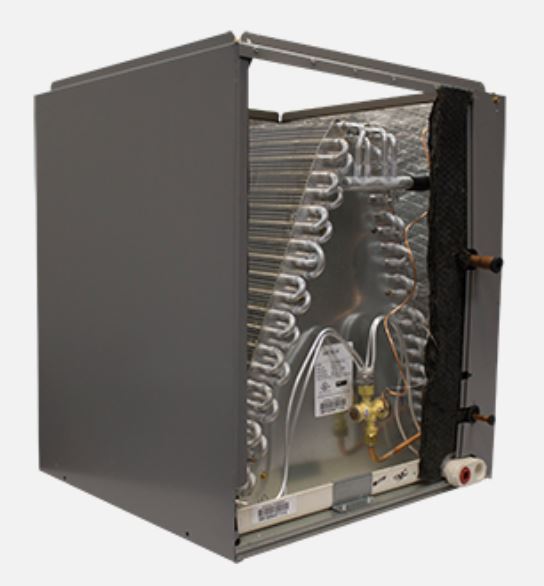

Armstrong Air 1.911535 Omniguard EAC4X-50 Cased Evaporator Coil, 5 ton, 1400 to 2400 cfm

Product Description

The Armstrong Air 1.911535 Omniguard EAC4X-50 is a cased evaporator coil designed for high-efficiency heating and air conditioning systems. It is suitable for a nominal capacity of five tons and can handle air flow rates between one thousand four hundred to two thousand four hundred cubic feet per minute.

• Omniguard total corrosion protection with proven tube and fin design
• Factory-installed TXV for quick installation in high-efficiency applications
• Foil-face insulation simplifies cleaning while preserving energy efficiency

Product Highlights

This evaporator coil features a tightly sealed cabinet and advanced design for optimal energy efficiency and lower maintenance.

Product Information

Standard Information

• Brand: Armstrong Air
• Part #: L8516

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 28.25 inches W x 32.62 inches H
• Flow Rate: 1400 to 2400 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 5 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
