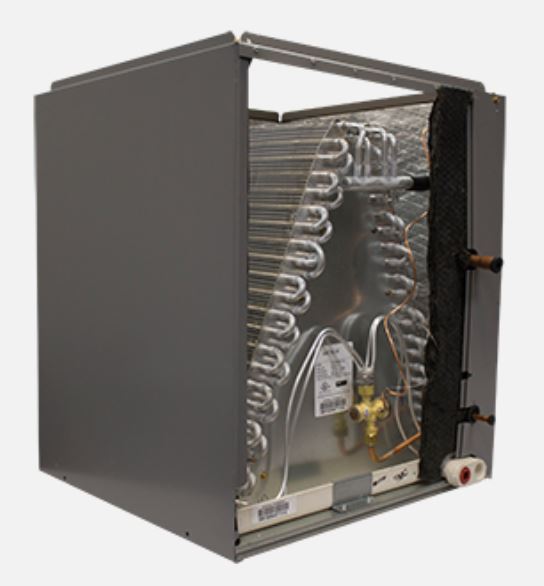

Armstrong Air 1.911533 Omniguard EAC4X-50 Cased Evaporator Coil Replacement MPN

Product Description

The Armstrong Air 1.911533 is a cased evaporator coil designed for efficiency and reliability. This unit serves capacities ranging from four to five tons and is suitable for air conditioning systems.

• Omniguard total corrosion protection with a proven tube and fin design
• Factory-installed TXV for quick installation in high-efficiency applications
• Foil-face insulation that simplifies cleaning while preserving energy efficiency

Product Highlights

This evaporator coil features a drain pan designed to minimize water retention, reducing odors and allergens. The Microban additive helps keep the drain pan clean by inhibiting mold and mildew growth.

Product Information

Standard Information

• Brand: Armstrong Air
• Part #: L8514

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 25.75 inches W x 30.62 inches H
• Flow Rate: 1200 to 2000 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 4 to 5 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
