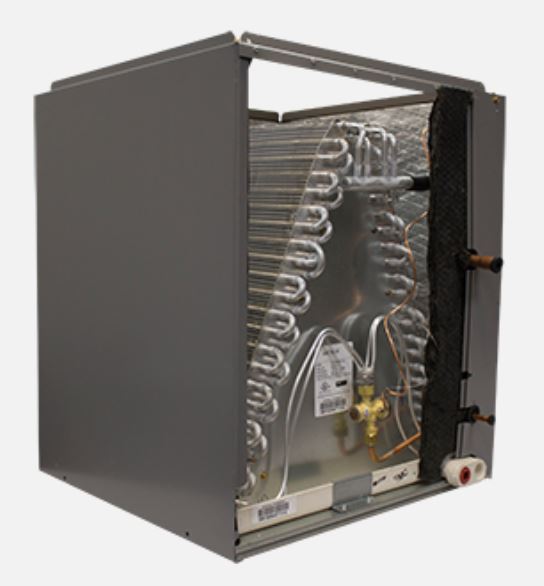

Armstrong Air 1.911532 Omniguard EAC4X-50 Cased Evaporator Coil

Product Description

The Armstrong Air 1.911532 is a cased evaporator coil designed for effective cooling in HVAC systems. This model supports up to four tons of capacity and airflow ranging from twelve hundred to two thousand cubic feet per minute. It is ideal for high-efficiency applications and features a corrosion-resistant design.

• Omniguard total corrosion protection with proven tube and fin design
• Factory-installed TXV for quick installation in high-efficiency applications
• Foil-face insulation simplifies cleaning while preserving energy efficiency

Product Highlights

This evaporator coil is suited for use with R410A refrigerants and meets industry standards with certifications. Its tight construction minimizes air leakage, improving efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8513

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 24.25 inches L x 25.25 inches W x 32.62 inches H
• Flow Rate: 1200 to 2000 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: TXV
• Manufacturing Standards/Approvals: AHRI Certified, cULus Listed
• Nominal Capacity: 4 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
