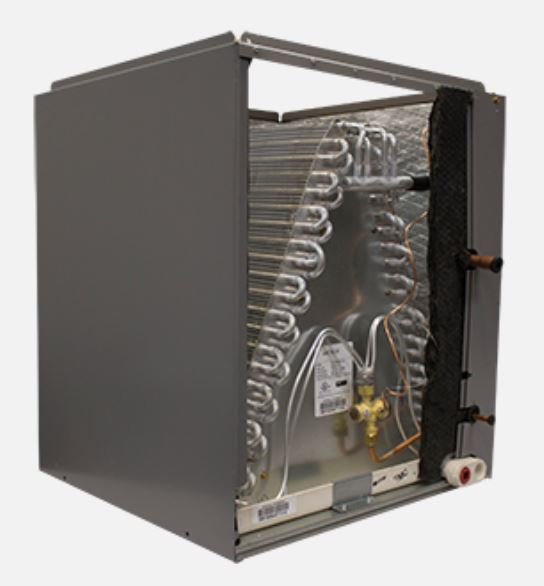

Armstrong Air 1.911531 Omniguard Cased Evaporator Coil, 4 ton, 1000 to 1800 cfm

Product Description

The Armstrong Air 1.911531 is an Omniguard cased evaporator coil designed for high efficiency in cooling systems. This evaporator coil supports airflow rates ranging from 1000 to 1800 cubic feet per minute (cfm) and has a nominal capacity of four tons. The unit is equipped with features to enhance durability and simplify maintenance.

• Omniguard total corrosion protection with proven tube and fin design.
• Factory-installed TXV for quick installation in high-efficiency applications.
• Foil-face insulation simplifies cleaning while preserving energy efficiency.

Product Highlights

This evaporator coil presents a reliable solution for HVAC systems, helping maintain clean and efficient operation.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8512

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 in L x 25.75 in W x 30.62 in H
• Flow Rate: 1000 to 1800 cfm
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 7/8 in
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 4 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
