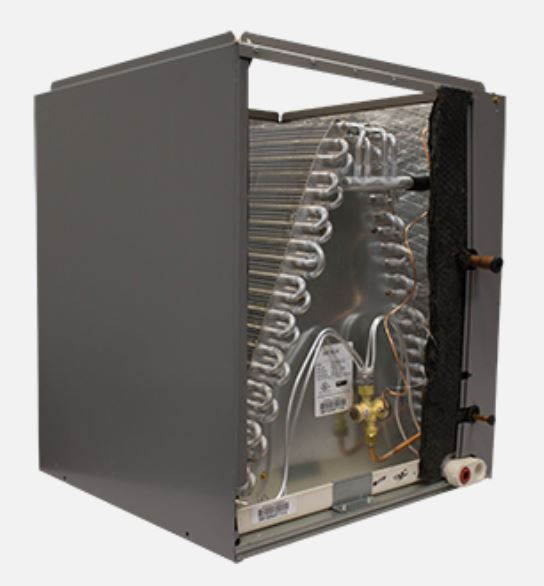

Armstrong Air 1.911527 Omniguard EAC4X-50 Cased Evaporator Coil 2.5 to 3 ton

Product Description

The Armstrong Air 1.911527 is an Omniguard Cased Evaporator Coil suitable for systems ranging from two point five to three tons of cooling capacity. This evaporator coil is designed for high airflow applications, allowing for a flow rate between eight hundred to sixteen hundred cubic feet per minute (cfm). Its compact size and efficient design make it a reliable choice for HVAC installations.

• Includes factory-installed TXV for ease of installation.
• Features foil-face insulation for easy cleaning and energy efficiency.
• Manufactured with Omniguard corrosion protection.

Product Highlights

This evaporator coil is engineered for durability and efficiency, featuring a tightly sealed steel cabinet and an advanced drain pan design.

Product Information

Standard Information

• Brand: Armstrong Air
• UPC: 662551515770

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 25.25 inches W x 27.62 inches H
• Flow Rate: 800 to 1600 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 2.5 to 3 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
