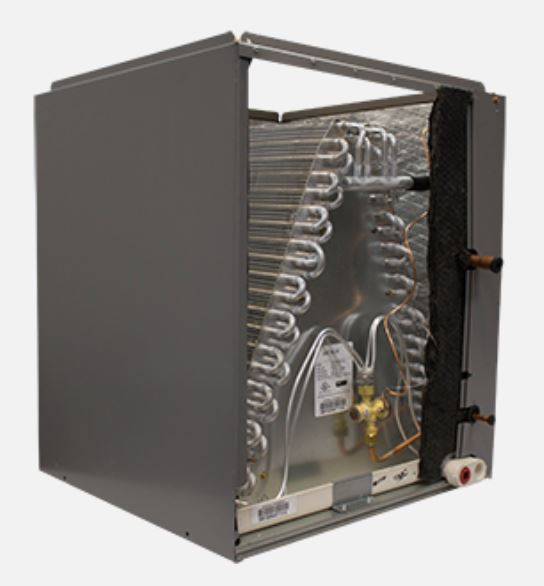

Armstrong Air 1.911526 Omniguard EAC4X-50 Cased Evaporator Coil 2.5 to 3 ton

Product Description

The Armstrong Air 1.911526 Omniguard Cased Evaporator Coil is designed for 2.5 to 3 ton systems. This model operates efficiently with airflow rates from eight hundred to sixteen hundred cubic feet per minute. It is optimized for R-410A refrigerant and features a durable aluminum tubing construction.

• Omniguard provides total corrosion protection with a proven tube and fin design.
• Factory-installed TXV simplifies installation in high-efficiency applications.
• The drain pan features one of the lowest water retention rates to minimize odors and allergens.

Product Highlights

With a tightly sealed painted steel cabinet, this evaporator coil ensures less than two percent air leakage. It includes a Microban additive to inhibit mold and mildew buildup in the drain pan.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8507

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: Twenty-three point seventy-five inches L x twenty-one point seventy-five inches W x twenty-seven point sixty-two inches H
• Flow Rate: Eight hundred to sixteen hundred cfm
• Line Size (Liquid): Three eighths inch
• Line Size (Suction): Three quarters inch
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: Two point five to three ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: Ten Years Limited Parts
