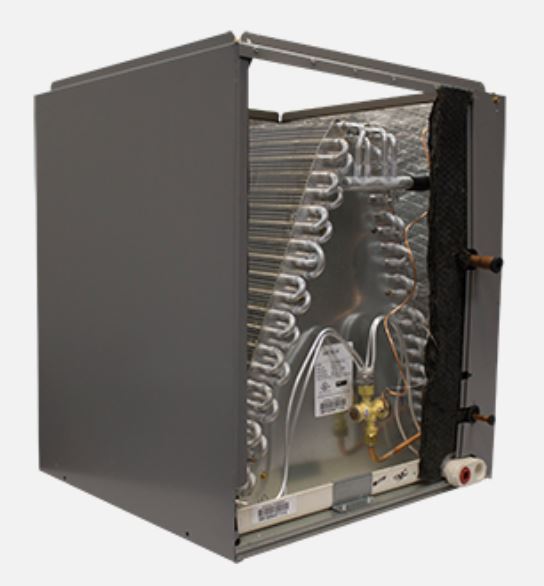

Armstrong Air 1.911525 Omniguard Cased Evaporator Coil, 2.5 to 3 ton, 800 to 1600 cfm

Product Description

The Armstrong Air Omniguard 1.911525 EAC4X-50 Cased Evaporator Coil is designed for efficient cooling and heating systems in residential applications. This evaporator coil is rated for use with appliances moving airflow between eight hundred and sixteen hundred cubic feet per minute (cfm), making it suitable for two and a half to three-ton systems.

• Total corrosion protection ensures product longevity.
• Factory-installed TXV optimizes refrigerant delivery for efficiency.
• Wall-to-wall insulation reduces air leakage to less than two percent.

Product Highlights

This evaporator features an insulated cabinet and uses Microban technology to combat mold and bacteria growth. Its design allows for a snug fit with existing ductwork to prevent energy loss.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8506

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: Twenty-three and three-quarters inches long x eighteen and three-quarters inches wide x twenty-seven and62 inches high
• Flow Rate: Eight hundred to sixteen hundred cfm
• Line Size (Liquid): Three-eighths inches
• Line Size (Suction): Three-quarters inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified, cULus Listed
• Nominal Capacity: Two and a half to three ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: Ten Years Limited Parts
