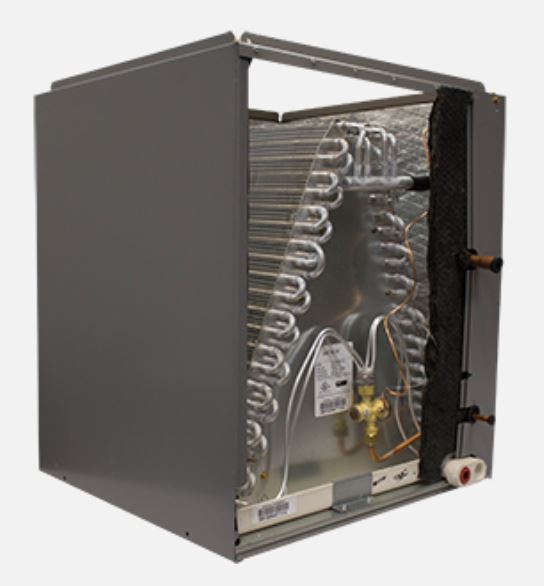

Armstrong Air 1.911523 Omniguard Cased Evaporator Coil 2.5 ton EAC4X-50

Product Description

The Armstrong Air 1.911523 Omniguard cased evaporator coil is designed to provide reliable performance for various heating and cooling systems. This evaporator coil is suitable for upflow air flow and fits the standard models of Armstrong Air systems.

• Omniguard total corrosion protection
• Microban protection against mold and bacteria
• Factory-installed TXV for optimal refrigerant flow

Product Highlights

The Armstrong Air evaporator coil features a fully insulated cabinet to minimize air leakage and enhance efficiency. The coil's design includes rifled tubing to promote refrigerant flow and improve heat transfer.

Product Information

Standard Information

• Brand: Armstrong Air
• UPC: 662551515732

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 18.75 inches W x 25.62 inches H
• Flow Rate: 600 to 1400 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 2.5 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
