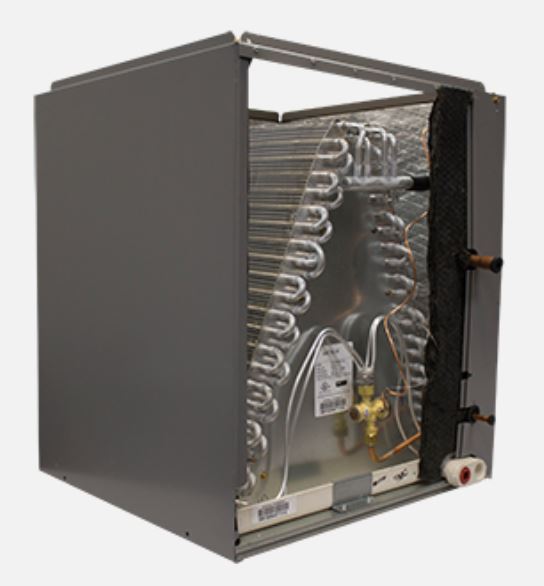

Armstrong Air 1.911521 EAC4X-50 Cased Evaporator Coil 2 ton 400 to 1200 cfm

Product Description

The Armstrong Air 1.911521 EAC4X-50 Cased Evaporator Coil is a vital component for HVAC systems designed for high efficiency and durability. This evaporator coil is suitable for use in residential and light commercial applications, offering a nominal capacity of two tons. It supports airflow rates from four hundred to twelve hundred cubic feet per minute (cfm).

• Omniguard corrosion protection for reliability in various conditions
• Factory-installed TXV enhances performance efficiency
• Foil-face insulation simplifies maintenance while maintaining energy efficiency

Product Highlights

Featuring a high-quality aluminum tubing design, the Armstrong Air evaporator coil is engineered for efficiency and ease of installation. Its advanced features such as a low water retention drain pan reduce the risk of odors and allergens. This makes it an optimal choice for improving indoor air quality.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8502

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 18.75 inches W x 21.62 inches H
• Flow Rate: 400 to 1200 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 2 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
