Armstrong Air 1.911519 Omniguard Cased Evaporator Coil 1.5 to 2 ton

Product Description

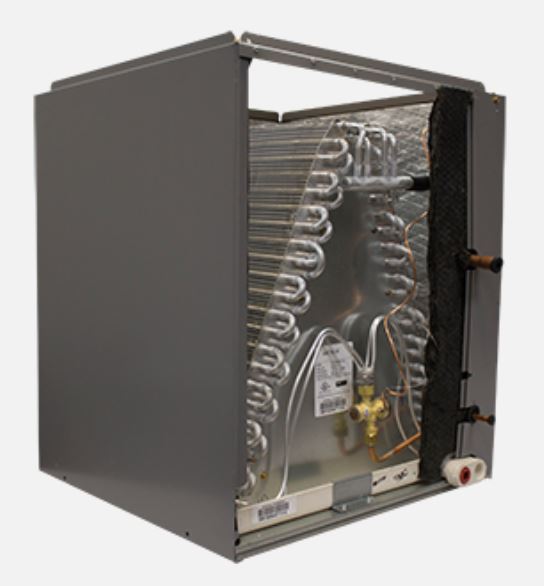

The Armstrong Air 1.911519 is an Omniguard cased evaporator coil designed for HVAC systems capable of handling one and a half to two ton of cooling capacity. This product supports airflow rates from four hundred to twelve hundred cubic feet per minute, making it suitable for various residential applications.

• Omniguard corrosion protection using tube and fin design.
• Factory-installed TXV for quick installation.
• Foil insulation for energy efficiency and easy cleaning.

Product Highlights

This evaporator coil combines efficiency and durability, ensuring optimal performance in air conditioning systems.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8500

Technical Specifications

• Air Flow Type: Upflow
• Dimensions: 23.75 inches L x 18.75 inches W x 19.62 inches H
• Flow Rate: 400 to 1200 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: TXV
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 1.5 to 2 ton
• Refrigerant Type: R-410A
• Series: EAC4X-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
