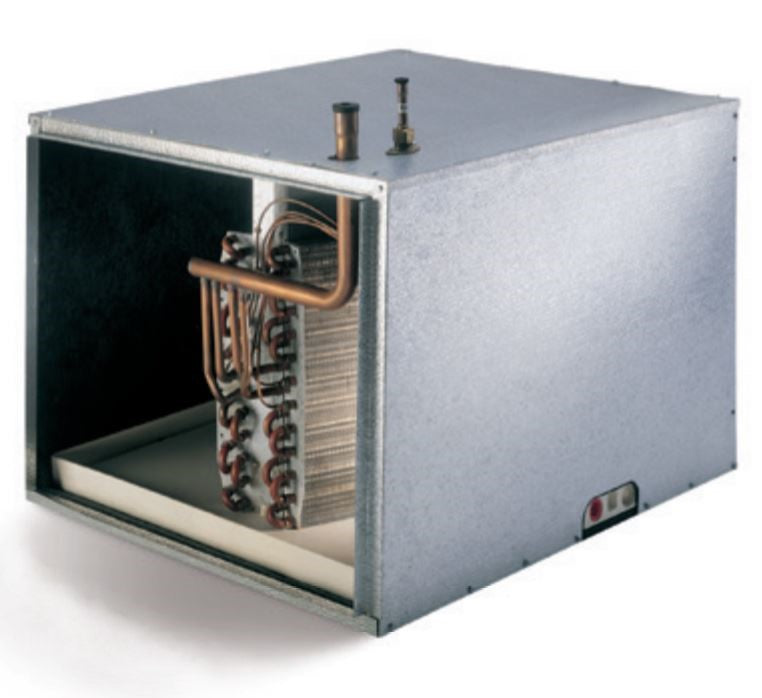

Armstrong Air 1.911518 EAH1P-50 Cased Evaporator Coil 5 ton

Product Description

The Armstrong Air 1.911518 EAH1P-50 Cased Evaporator Coil is designed for efficient heating and cooling applications. It is a reliable solution with features that promote durability and functionality.

• Omniguard protection against corrosion and leaks
• Microban treatment to reduce mold and bacteria
• Designed to pair perfectly with Armstrong Air heating systems

Product Highlights

This evaporator coil supports air flow rates from 1400 to 2400 cubic feet per minute, enhancing system efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8477

Technical Specifications

• Air Flow Type: Horizontal
• Dimensions: 23-3/4 inches L x 35 inches W x 28-3/4 inches H
• Flow Rate: 1400 to 2400 cfm
• Nominal Capacity: 5 ton
• Refrigerant Type: R22/R-410A
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: Piston Expansion
• Warranty: 10 Years Limited Parts
• Series: EAH1P-50
• Tubing Material: Aluminum
• Manufacturing Standards: AHRI Certified | cULus Listed
