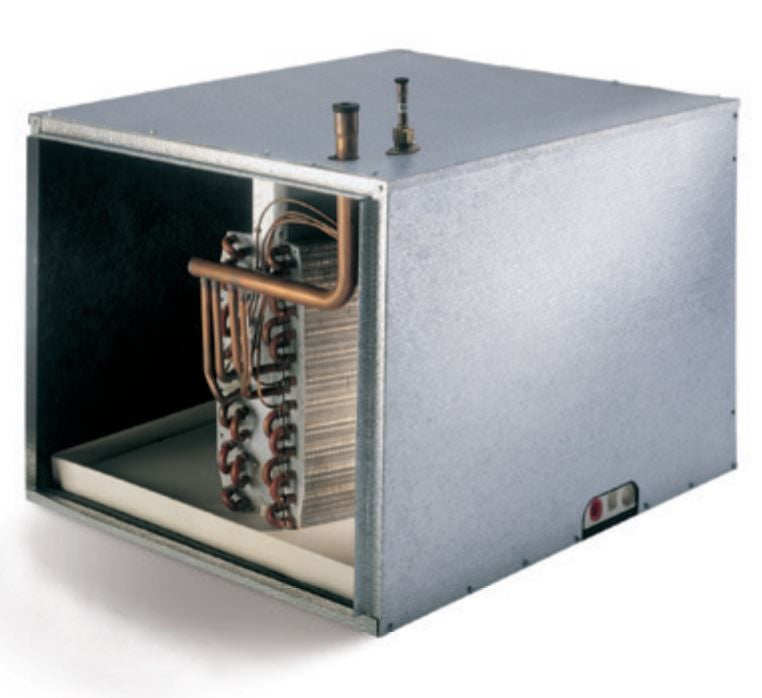

Armstrong Air 1.911517 Omniguard EAH1P-50 Cased Evaporator Coil, 4 ton, 1200 to 2200 cfm

Product Description

The Armstrong Air 1.911517 is an Omniguard EAH1P-50 Cased Evaporator Coil designed for optimal performance. This model is structured to handle airflow between twelve hundred and two thousand two hundred cubic feet per minute. The construction supports a nominal capacity of four tons, suitable for various HVAC systems.

• Omniguard corrosion protection for durability.
• Microban treatment in drain pans for mold prevention.
• Compatible with Armstrong Air heating and cooling systems.

Product Highlights

This evaporator coil features a fully insulated cabinet to enhance energy efficiency and prevent air leakage.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8476

Technical Specifications

• Air Flow Type: Horizontal
• Dimensions: Twenty-three and three-quarters inches L x thirty-five inches W x twenty-five and one-quarter inches H
• Flow Rate: Twelve hundred to two thousand two hundred cfm
• Line Size (Liquid): Three-eighths inches
• Line Size (Suction): Seven-eighths inches
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: Four tons
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: Ten Years Limited Parts
