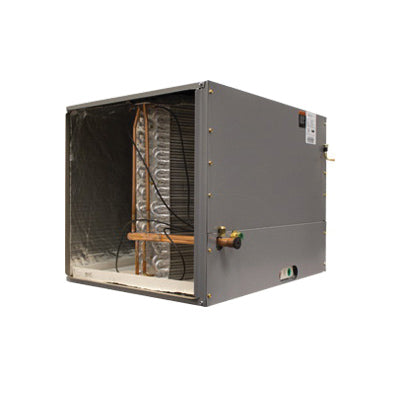

Armstrong Air 1.911515 EAH1P-50 Cased Evaporator Coil 4 ton R22/R-410A

Product Description

The Armstrong Air 1.911515 EAH1P-50 is a cased evaporator coil designed for efficient cooling and heating applications. This evaporator coil is suitable for use with R22 and R-410A refrigerants and accommodates airflow from one thousand to eighteen hundred cubic feet per minute. It features a dedicated horizontal airflow design to enhance performance.

• Durable galvanized steel case
• Proven tube and fin design
• Microban protection for cleaner air

Product Highlights

This evaporator coil offers corrosion protection and has removable panels for easy access and maintenance. The insulation facilitates cleaning while maximizing energy efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8473

Technical Specifications

• Air Flow Type: Horizontal
• Color: Platinum Gray
• Dimensions: 23-3/4 inches L x 35 inches W x 21-3/4 inches H
• Flow Rate: 1000 to 1800 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 4 ton
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
