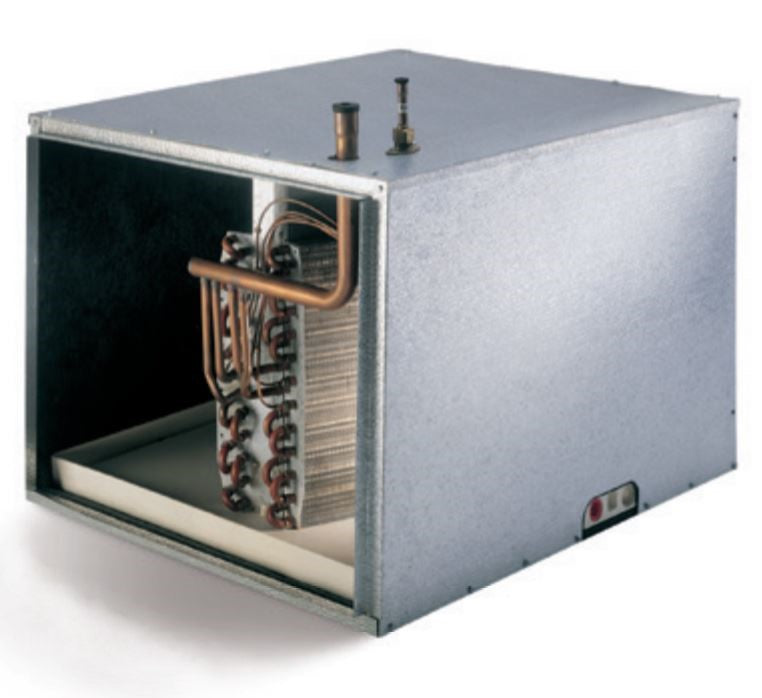

Armstrong Air 1.911513 EAH1P-50 Cased Evaporator Coil 3.5 Ton 800 to 1800 cfm

Product Description

The Armstrong Air 1.911513 EAH1P-50 Cased Evaporator Coil is designed for energy efficiency and long-term performance. This evaporator coil is suitable for a nominal capacity of three and a half tons and has a flow rate ranging from eight hundred to eighteen hundred cubic feet per minute.

• Omniguard total corrosion protection for durability
• Microban protection to inhibit mold and bacteria
• Matched system for seamless installation with Armstrong Air products

Product Highlights

This evaporator coil features advanced technology for optimal refrigerant flow and efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8472

Technical Specifications

• Air Flow Type: Horizontal
• Color: Platinum Gray
• Dimensions: 23-3/4 inches L x 35 inches W x 21-3/4 inches H
• Flow Rate: 800 to 1800 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 3.5 ton
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
