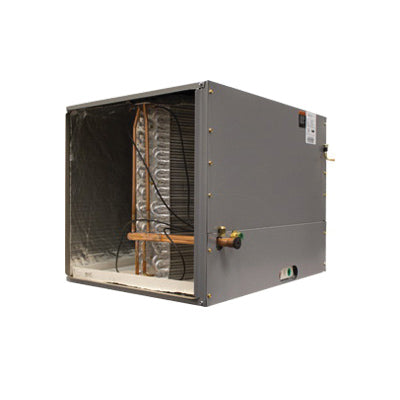

Armstrong Air 1.911512 EAH1P-50 Cased Evaporator Coil 3 ton 800 to 1600 cfm

Product Description

The Armstrong Air 1.911512 EAH1P-50 is a cased evaporator coil designed for efficient heating and air conditioning. This unit is suitable for a nominal capacity of three tons with airflow ranging from eight hundred to sixteen hundred cubic feet per minute (cfm).

• Features Omniguard total corrosion protection.
• Foil-face insulation for energy efficiency.
• Microban additive inhibits mold and mildew growth.

Product Highlights

This evaporator coil is built with a dedicated horizontal design, insulated galvanized steel casing, and removable panels for easy access.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8471

Technical Specifications

• Air Flow Type: Horizontal
• Nominal Capacity: 3 ton
• Flow Rate: 800 to 1600 cfm
• Dimensions: 23-3/4 in L x 30 in W x 25-1/4 in H
• Refrigerant Type: R22/R-410A
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 3/4 in
• Metering Device: Piston Expansion
• Warranty: 10 Years Limited Parts
