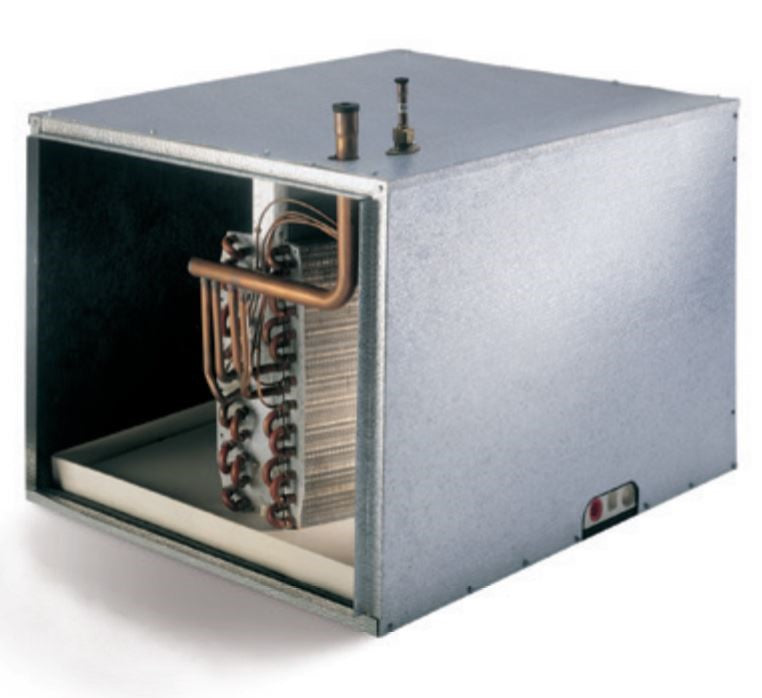

Armstrong Air 1.911511 Omniguard EAH1P-50 Cased Evaporator Coil 3 ton

Product Description

The Armstrong Air 1.911511 Omniguard EAH1P-50 is a cased evaporator coil designed for efficient heating and cooling systems. This evaporator coil is suitable for systems operating at a nominal capacity of three tons with airflow rates between eight hundred to sixteen hundred cubic feet per minute.

• Features Omniguard total corrosion protection to enhance durability.
• Includes Microban protection for the prevention of mold and bacteria.
• Engineered to match Armstrong Air heating and cooling systems for optimal performance.

Product Highlights

The Armstrong Air evaporator coil ensures efficient operation with its advanced design and technologies such as MHT for improved heat transfer.

Product Information

Standard Information

• Brand: Armstrong Air
• Model Number: 1.911511

Technical Specifications

• Air Flow Type: Horizontal
• Nominal Capacity: 3 ton
• Flow Rate: 800 to 1600 cfm
• Dimensions: 23-3/4 inches L x 30 inches W x 21-3/4 inches H
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: Piston Expansion
• Refrigerant Type: R22/R-410A
• Tubing Material: Aluminum
• Warranty: 10 Years Limited Parts
