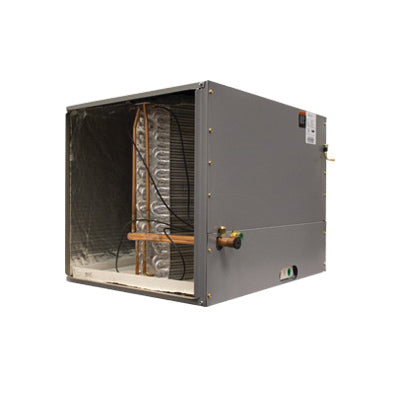

Armstrong Air 1.911509 EAH1P-50 Cased Evaporator Coil 2.5 ton 400 to 1400 cfm

Product Description

The Armstrong Air 1.911509 EAH1P-50 Cased Evaporator Coil is designed for effective cooling in residential and commercial HVAC systems. This evaporator coil has a nominal capacity of two point five tons and accommodates airflow rates from four hundred to fourteen hundred cubic feet per minute (cfm).

• Omniguard total corrosion protection
• Foil-face insulation for easy cleaning
• Microban additive for mold and mildew prevention

Product Highlights

This evaporator coil features a dedicated horizontal design and an insulated galvanized steel case. It is equipped with removable panels for easy access and installation. Refrigerant lines extend outside the cabinet for simplified connections.

Product Information

Standard Information

• Brand: Armstrong Air
• Part #: L8469
• UPC: 662551515596

Technical Specifications

• Air Flow Type: Horizontal
• Color: Platinum Gray
• Dimensions: 23-3/4 inches L x 30 inches W x 21-3/4 inches H
• Flow Rate: 400 to 1400 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 2.5 ton
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
