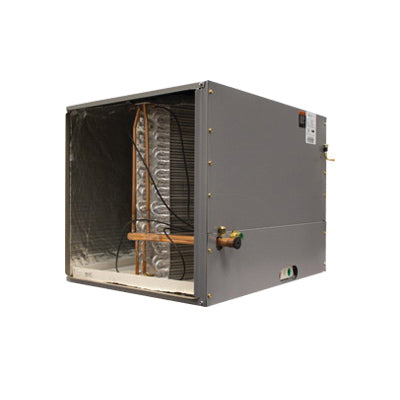

Armstrong Air 1.911507 EAH1P-50 Cased Evaporator Coil 2 Ton 400 to 1400 cfm

Product Description

The Armstrong Air 1.911507 EAH1P-50 is a cased evaporator coil designed for efficient air conditioning. It operates with an air flow of four hundred to fourteen hundred cubic feet per minute, suitable for residential and light commercial use. Key features include Omniguard total corrosion protection and foil-face insulation for easy cleaning and energy efficiency.

• Omniguard total corrosion protection with proven tube and fin design
• Foil-face insulation simplifies cleaning while preserving energy efficiency
• Microban additive keeps drain pans free of mold and mildew

Product Highlights

This evaporator coil is engineered for durability and performance, featuring an insulated galvanized steel case and refrigerant lines that extend outside the cabinet for easier connections.

Product Information

Standard Information

• Brand: Armstrong Air
• Type: Cased

Technical Specifications

• Air Flow Type: Horizontal
• Color: Platinum Gray
• Dimensions: Twenty-three and three-quarter inches long x thirty inches wide x twenty-one and three-quarter inches high
• Flow Rate: Four hundred to fourteen hundred cfm
• Line Size (Liquid): Three-eighths inch
• Line Size (Suction): Three-fourths inch
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: Two ton
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Warranty: Ten Years Limited Parts
