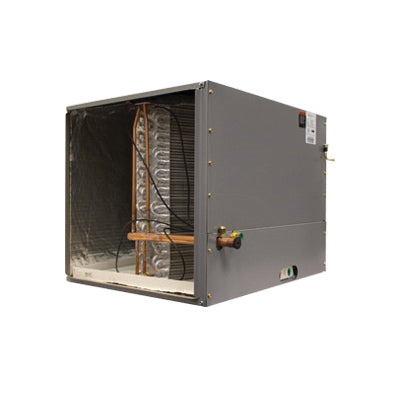

Armstrong Air 1.911505 EAH1P-50 Cased Evaporator Coil 1.5 ton 200 to 1000 cfm

Product Description

The Armstrong Air 1.911505 EAH1P-50 Cased Evaporator Coil is designed for efficient cooling and is suitable for a variety of HVAC systems. This evaporator coil provides effective temperature control while ensuring maximum airflow. Key features include:

• Omniguard total corrosion protection with proven tube and fin design
• Foil-face insulation simplifies cleaning while preserving energy efficiency
• Microban additive helps keep drain pans free of mold and mildew for cleaner, healthier air

Product Highlights

This cased evaporator coil features a horizontal airflow design and is housed in insulated galvanized steel. The removable panels offer easy access to the coil, enabling better maintenance. The refrigerant lines extend outside the cabinet for simple connections.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8464

Technical Specifications

• Air Flow Type: Horizontal
• Color: Platinum Gray
• Dimensions: 23-3/4 in L x 30 in W x 18-3/4 in H
• Flow Rate: 200 to 1000 cfm
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 3/4 in
• Metering Device: Piston Expansion
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 1.5 ton
• Refrigerant Type: R22/R-410A
• Series: EAH1P-50
• Tubing Material: Aluminum
• Type: Cased
• Warranty: 10 Years Limited Parts
