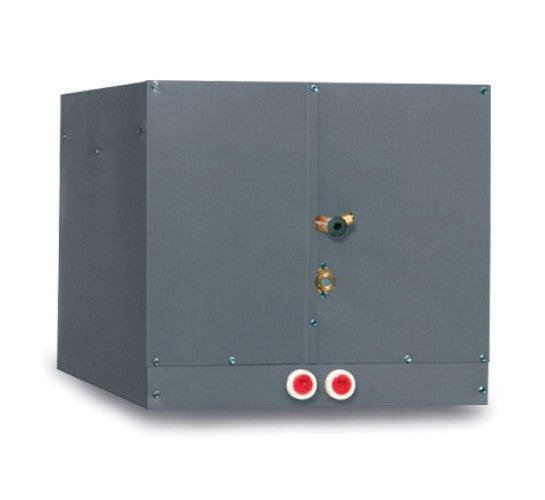

Armstrong Air 1.911479 ED1P Cased Downflow Evaporator Coil 2 ton Nominal

Product Description

The Armstrong Air 1.911479 ED1P Cased Downflow Evaporator Coil is designed specifically for matching Armstrong Air heating and cooling systems. This two-ton nominal coil enhances the efficiency of HVAC systems while ensuring reliable performance.

• Designed for compatibility with Armstrong Air units
• Features a removable cabinet for easy access and maintenance
• Antibacterial drain pan reduces mold and bacteria growth

Product Highlights

This evaporator coil features rifled tubing for improved refrigerant flow. The lanced coil fins enhance air and metal contact, optimizing heat transfer.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: 1.911479

Technical Specifications

• Dimensions: 26-1/8 inches L x 14-1/8 inches H
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Manufacturing Standards: AHRI Certified, cULus Listed
• Nominal Capacity: 2 ton
• Package Height: 33.0 inches
• Package Length: 64.0 inches
• Package Volume: 1.488 cu-ft
• Package Weight: 44.0 lb
• Package Width: 43.0 inches
• Series: ED1P
• Type: Cased Downflow
