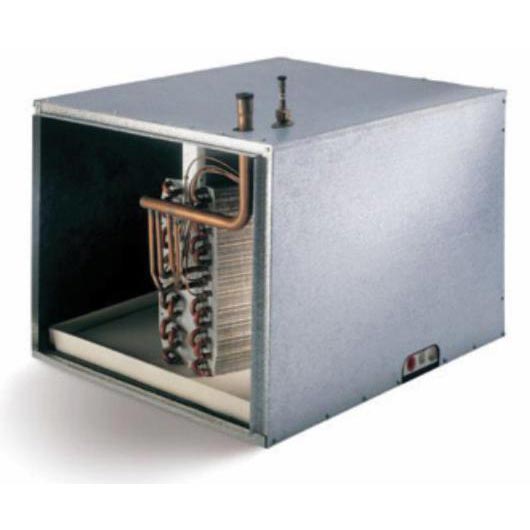

Armstrong Air 1.911371 Evaporator Coil 2 ton Nominal Horizontal Air Flow Cased Enclosure

Product Description

The Armstrong Air 1.911371 Evaporator Coil is designed for reliable performance in HVAC systems. With a nominal capacity of two tons, this coil is made for horizontal airflow. It is built with a cased enclosure to ensure durability and easy installation.

• Designed with Microban antimicrobial protection
• Compatible with UV lights for enhanced cleaning
• Features dual condensate drains for flexibility

Product Highlights

This evaporator coil improves humidity control and enhances overall system efficiency.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L5641

Technical Specifications

• Air Flow Type: Horizontal
• Dimensions: 17-1/2 inches H x 26-1/2 inches W x 21-1/4 inches D
• Enclosure Type: Cased
• Liquid Line Size: 3/8 inches
• Manufacturing Standards/Approvals: AHRI Certified, cULus Listed
• Nominal Capacity: 2 ton
• Package Weight: 50.0 lb
• Refrigerant Type: R-22/R-410A
• Series: EH1P-1
• Suction Line Size: 7/8 inches
