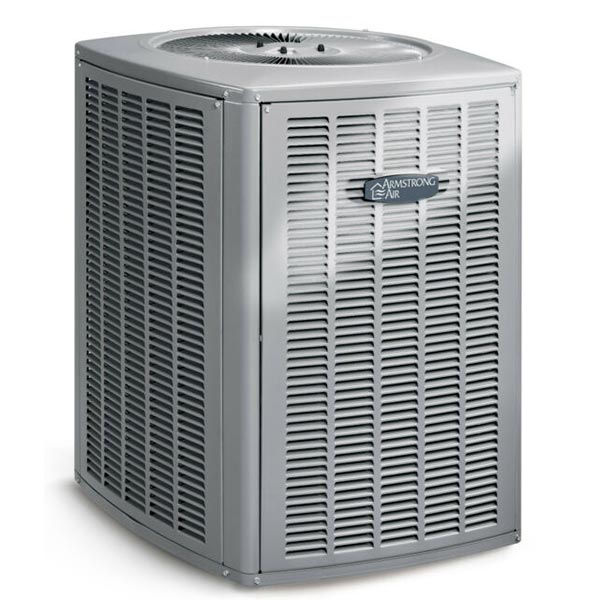

Armstrong Air 1.443079 4SHP16LE136P-50 3 Ton 16 SEER Omniguard Split System Heat Pump

Product Description

The Armstrong Air 1.443079 is a 4SHP16LE136P-50 heat pump designed for reliable heating and cooling. This model has a capacity of three tons and provides a high energy efficiency with a SEER rating of sixteen. It operates on 208-230 volts and is suitable for various residential applications.

• Dual-fuel compatible for versatile heating options.
• Energy Star certified with excellent efficiency ratings.
• Quiet operation thanks to advanced technology.

Product Highlights

This heat pump is built for durability and quiet performance. It features a robust compressor and advanced corrosion protection to extend the lifespan. The design allows easy integration into existing systems.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L8703

Technical Specifications

• Compressor Type: Single Stage Scroll
• Cooling Capacity: 3 ton
• Dimensions: 29.25 in W x 31.25 in D x 43.75 in H
• Drive Type: Direct Drive
• Efficiency Rating COP: 3.79
• Efficiency Rating EER: 13
• Efficiency Rating HSPF: 9.5
• Efficiency Rating SEER: 16
• Heating Capacity: 36000 Btu/hr
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 7/8 in
• Material: Steel
• Mfg Standards/Approvals: Energy Star Listed
• Motor HP: 1/3 hp
• Motor Type: Condenser Fan
• Nominal RPM: 820
• Power Source: 208/230 VAC 60 Hz 1 ph
• Refrigerant Charge: 135 oz
• Refrigerant Type: R-410A
• Series: 4SHP16LE
• Type: Louvered Enhanced
• Warranty: 10 Years Parts
