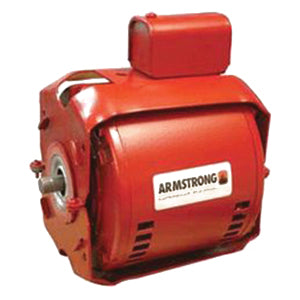

Armstrong 811757-002 Motor 3/4 hp 115/230 VAC Replacement MPN

Product Description

The Armstrong 811757-002 is a motor designed for various circulator pumps. It operates at 115/230 VAC and has a power rating of 3/4 horsepower. The motor runs at 1750 RPM and is specifically designed for clockwise rotation. It is compatible with H-54, H-64, H-66, and S-57 models. When replacing motors from Bell and Gossett, it is recommended to also replace the coupler with Armstrong part 806137-000 for the five series pumps, or 816665-000 for the six series pumps.

• Operates at 115/230 VAC
• Three-quarter horsepower and 1750 RPM
• Specifically designed for H-Series circulator pumps

Product Highlights

This motor is a reliable choice for heating systems, ensuring efficient and effective operation for various heating applications.

Product Information

Standard Information

• Brand: Armstrong
• Part #: 811757-002

Technical Specifications

• Frequency Rating: 60 Hz
• HP Rating: 3/4 hp
• Item Name: Motor
• Mounting: Resilient
• Phase: 1 ph
• RPM: 1750
• Rotation: CW
• Voltage Rating: 115/230 VAC
