Armstrong 572006-196 expansion tank 35-L

Product Description

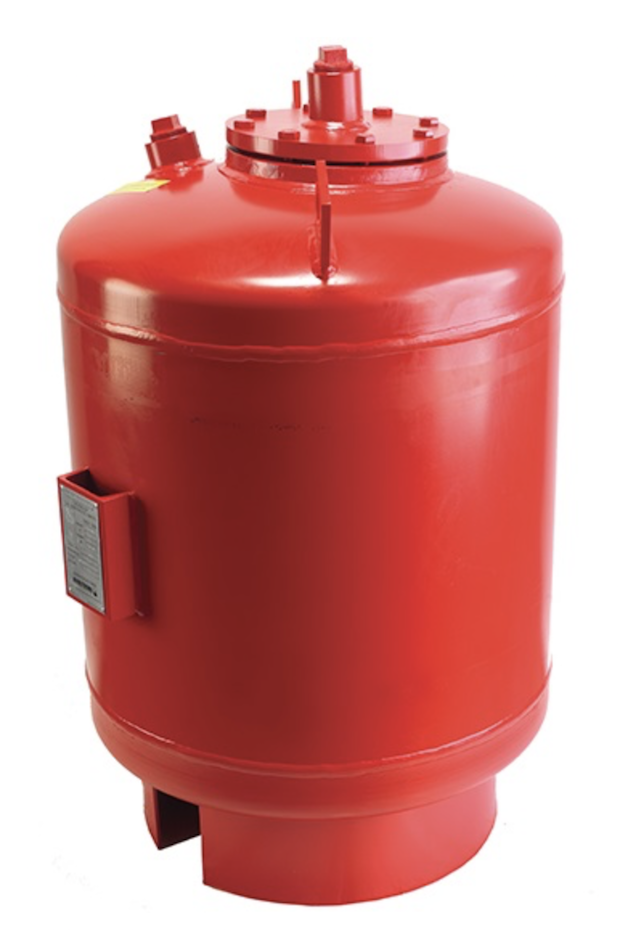

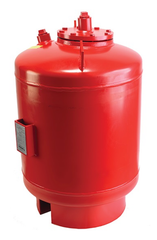

The ARMSTRONG 572006-196 Expansion Tank is a 35-L (10 Gallons/38 Liters) Series L bladder type unit. Designed to reduce tank sizes by up to 80%, it maintains system pressures using compressed air to manage changing water volume. The bladder isolates expanded water from the pre-charged, field-adjustable air cushion. This tank is suitable for pressure stabilization in water-based mechanical systems, such as booster installations, boiler systems, and chiller plants.

• Designed to reduce tank sizes by up to 80% over standard designs.
• Uses compressed air to maintain system pressures by accepting and expelling changing water volume.
• Isolates expanded water from the pre-charged, field-adjustable air cushion.

Product Highlights

Reduces tank size, stabilizes system pressure, and supports various water-based mechanical systems.

Product Information

Standard Information

• Brand: ARMSTRONG
• Manufacturer Part Number: 572006-196

Technical Specifications

• MPN: 572006-196
• Tank Volume: 10 Gallons (38 Liters)
• Flow Range: 10 to 1056 US gpm
• Material: Carbon Steel
• Pressure Rating: 125 psi
• Series: 35 L-Series
